INFINEON IKW40N65RH5XKSA1 Hybrid Power Module
The Hybrid CoolSiC™ IGBT combines TrenchSTOP™ 5 technology with CoolSiC™ Schottky barrier diodes, delivering ultra-low switching losses and high efficiency in power switching applications. Suitable for industrial power supplies, energy generation, and energy distribution systems, it operates at a maximum junction temperature of 175°C, with a collector-emitter voltage of 650V and a continuous collector current of 40A. Its module design ensures reliable performance in high-voltage, high-current environments, backed by JEDEC qualification, RoHS compliance, and lead-free plating for sustainable and safe operation in demanding industrial and energy applications.
INFINEON IKW40N65RH5XKSA1 Hybrid Power Module Specifications:
- Maximum collector-emitter voltage VceVor: 650 V
- Collector current, continuous Ic: 40 A at 25°C
- Pulsed collector current Iepuis: 160 A
- Maximum junction temperature: 175°C
- Power dissipation at 25°C: 250 W
- Thermal resistance junction-case Rjc: 0.60 K/W
- Thermal resistance junction-ambient Rja: 40 K/W
- Gate-emitter voltage: +20 V (max transient +30 V)
- Diode forward voltage: 1.65 V at 40 A, Ty = 175°C
- Switching energies: Eon up to 0.16 mJ, Eoff up to 0.12 mJ
- Package: PG-TO247-3, with pin configuration: Gate (Pin 1), Collector & backside, Halogen-Free
- Qualified according to JEDEC standards, RoHS compliant, Pb-free lead plating
- Operating temperature range: -40°C to +175°C
- Soldering temperature: 260°C for 10s, mounting torque: 0.6 Nm
- Package dimensions: A=4.70–5.30 mm, D=20.70–21.50 mm, E=15.50–16.30 mm

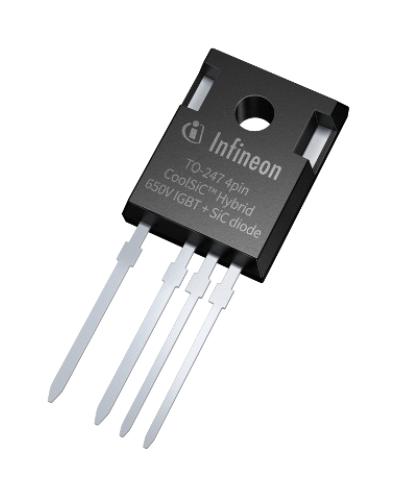

Buy the Buy Infineon Hybrid CoolSiC IGBT Part Number IKW40N65RH5XKSA1 Online
Experience high reliability and energy efficiency with the Hybrid CoolSiC IGBT module, perfect for industrial power supplies, solar inverters, and energy storage systems. This module features low switching losses, high junction temperature ratings of up to 175°C, and a maximum collector-emitter voltage of 650V, delivering robust performance in demanding environments. With proven qualification standards and RoHS compliance, it ensures safe, eco-friendly operation. Equip your systems with this advanced module today and benefit from enhanced power efficiency, durability, and seamless integration into your energy and industrial solutions.
Get Infineon CoolSiC IGBT IKW40N65RH5XKSA1 today—designed for high-voltage precision switching and long-lasting industrial performance.
Frequently Asked Questions
Where can I buy INFINEON IKW40N65RH5XKSA1?
You can click on the BUY or RFQ button to purchase IKW40N65RH5XKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IKW40N65RH5XKSA1?
You can download the IKW40N65RH5XKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IKW40N65RH5XKSA1?
INFINEON
