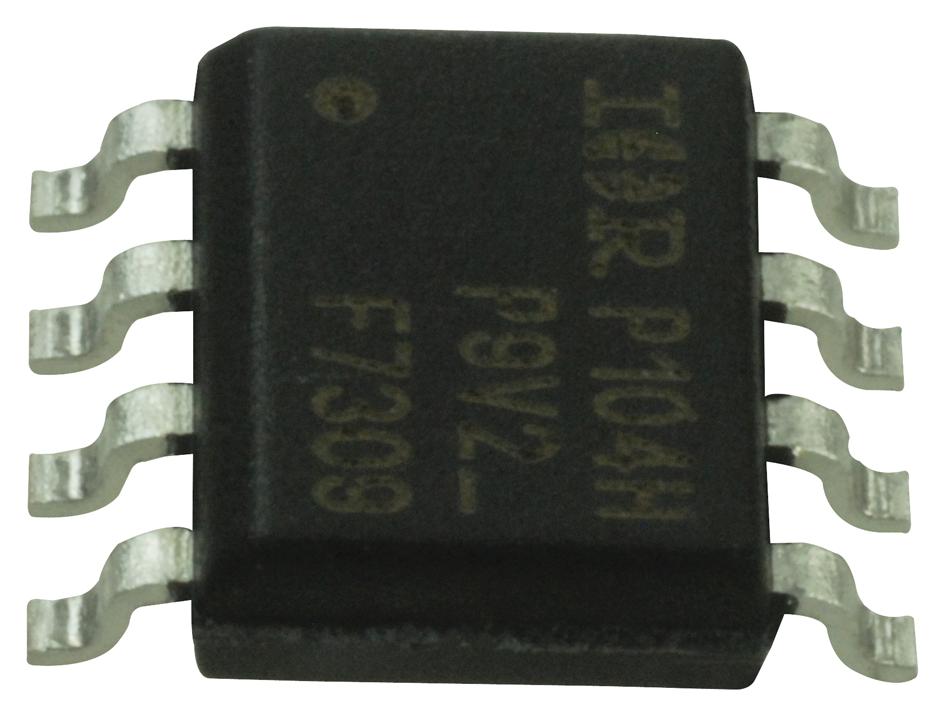

INFINEON IRF7309TRPBF Power MOSFET
This advanced power MOSFET features ultra-low on-resistance, fast switching, and high efficiency, making it ideal for industrial power applications. Built with HEXFET™ technology, it supports high current, low voltage drops, and excellent thermal performance. Package options include SO-8 with enhanced thermal characteristics and multiple-die capability, reducing PCB space. Suitable for vapor phase, infrared, or wave soldering processes, it can dissipate over 0.8W. The device operates at junction temperatures from -55°C to +150°C, with a maximum drain current of 3.5A for N-channel and -2.3A for P-channel.
INFINEON IRF7309TRPBF Power MOSFET Specifications:
- Package: SO-8 with enhanced thermal characteristics and multiple-die capability
- Maximum Drain Current: 3.5A (N-channel), -2.3A (P-channel)
- Continuous Drain Current at 70°C: 28A (N-channel), 18A (P-channel)
- Power Dissipation: 2.0W
- Maximum Drain-to-Source Voltage: 25V
- Gate-to-Source Voltage: ±20V
- Junction and Storage Temperature Range: -55°C to +150°C
- Thermal Resistance Junction-to-Ambient: Max 625°C/W
- Turn-On Delay Time: 25ns (P-channel)
- Fall Time: 50ns (P-channel)
- Gate Charge: 47nC (N-channel), 131nC (P-channel)
- Capacitance Input/Output: 20/pF (Coss), 32/pF (Ciss)
- Internal Inductance: Drain 40nH, Source 6nH
- Reverse Recovery Time: 69-100ns (P-channel)
- Maximum Junction Temperature: 150°C
Buy the International IRF7105PbF – Reliable Power MOSFET for Industrial Applications
Secure your supply of the Power MOSFET to enhance your industrial power systems. The IRF7105PbF offers low on-resistance, fast switching, and high thermal efficiency. Its SO-8 package facilitates compact, space-saving designs, while its high current capabilities ensure robust performance under demanding conditions. This device is suitable for high-speed switching power supplies, motor drivers, and other power management applications. Order online today to benefit from quick delivery, trusted quality, and technical support, ensuring your project stays on schedule with reliable, high-performance components.
Buy International IRF7105PbF now and experience unmatched reliability and superior performance in high-power electronic designs.
Frequently Asked Questions
Where can I buy INFINEON IRF7309TRPBF?
You can click on the BUY or RFQ button to purchase IRF7309TRPBF from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IRF7309TRPBF?
You can download the IRF7309TRPBF datasheet or visit the INFINEON website for support.
Who is the manufacturer of IRF7309TRPBF?
INFINEON
