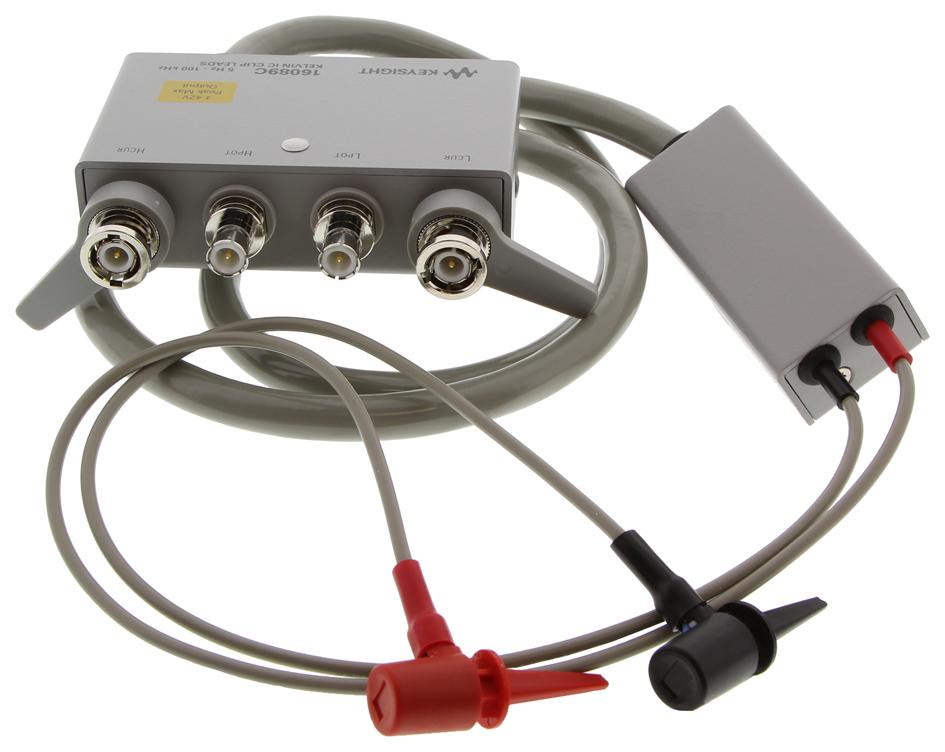

KEYSIGHT TECHNOLOGIES 16089C Kelvin/Alligator Clip Lead

The 16089C is a 1.3-meter Kelvin/Alligator Clip Lead designed for use with four-terminal-pair type LCR meters and impedance analyzers. It enables measurement of irregularly shaped components that cannot be tested with standard fixtures. Features include small-sized clips, with optional medium-sized clips available, and inherent stray capacitance, residual inductance, and resistance which may affect measurement accuracy. To mitigate these effects, the use of OPEN and SHORT compensation functions is recommended. Ideal for industrial testing and measurement, it supports terminals approximately 1mm in diameter, 2mm in length, and 2mm apart. Proper calibration ensures precise impedance analysis of complex components.

View 16089CDatasheet [pdf]

Buy the Keysight Series Kelvin/Alligator Clip Lead: 16089C

Enhance your impedance measurement capabilities with the Keysight Series Kelvin/Alligator Clip Lead. Designed for four-terminal-pair type LCR meters, the 16089C features a 1.3-meter cable, small clips, and versatile application support for irregularly shaped components. Its inherent stray capacitance, residual inductance, and resistance can affect accuracy, but with proper OPEN and SHORT compensation, you achieve reliable results. Ideal for industrial and high-precision testing, this lead provides excellent connectivity, durability, and measurement consistency, making it an essential accessory for advanced electronic component analysis.

Order your Keysight Series Kelvin/Alligator Clip Lead 16089C today and ensure precise measurements for complex components in industrial testing scenarios.
