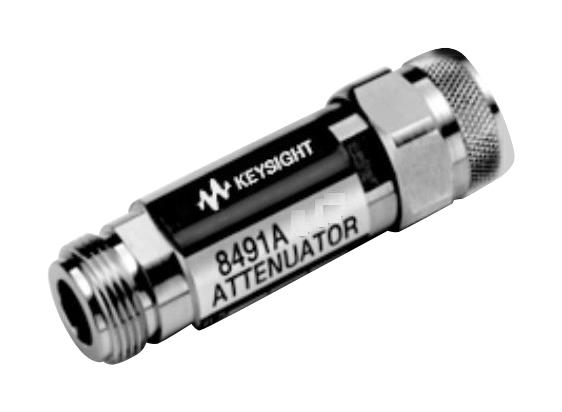

KEYSIGHT TECHNOLOGIES 8491A030 Coaxial Attenuator
The 8491A/030 coaxial fixed attenuator offers precise attenuation with a flat frequency response and low Standing Wave Ratio (SWR) across a broad frequency range. Equipped with Type-N connectors and providing 30 dB attenuation, this device is tested over its entire frequency spectrum to ensure compliance with specifications. Calibration points are indicated on a chart attached to each unit for accuracy. It operates from DC up to 12.4 GHz, with a maximum SWR of 1.2 between DC and 4 GHz, and 1.3 from 4 GHz to 12.4 GHz.
KEYSIGHT TECHNOLOGIES 8491A030 Coaxial Attenuator Specifications:
- Frequency Range: DC to 12.4 GHz
- Attenuation: 30 dB
- Maximum SWR: 1.2 (DC to 4 GHz), 1.3 (4 to 12.4 GHz)
- Connector Type: Type-N male
- Dimensions: 67 x 21 mm
- Weight: 110 g
- Temperature Stability: 0.0002 dB/dB/°C
- Maximum Input Power: 2 W
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -55°C to +85°C
- Humidity: <95% at 40°C
- Material: Stainless steel connector, film resistive element on sapphire substrate
Buy the Buy Keysight Attenuator Part Number 8491A030 Online
Enhance your RF measurement accuracy with the Keysight coaxial attenuator. This durable, high-precision device offers 30 dB attenuation from DC to 12.4 GHz, with low SWR and verified calibration. Perfect for calibration standards and sensitive system testing, it features Type-N connectors and is tested over the entire frequency range to ensure compliance. Its compact size and reliable performance make it ideal for laboratory and field applications. Order online today for unmatched precision and durability in RF attenuation tasks.
Buy Keysight 30 dB coaxial attenuator with high accuracy and flat frequency response. Reliable for RF calibration, measurements, and system testing, order now for precision performance.
