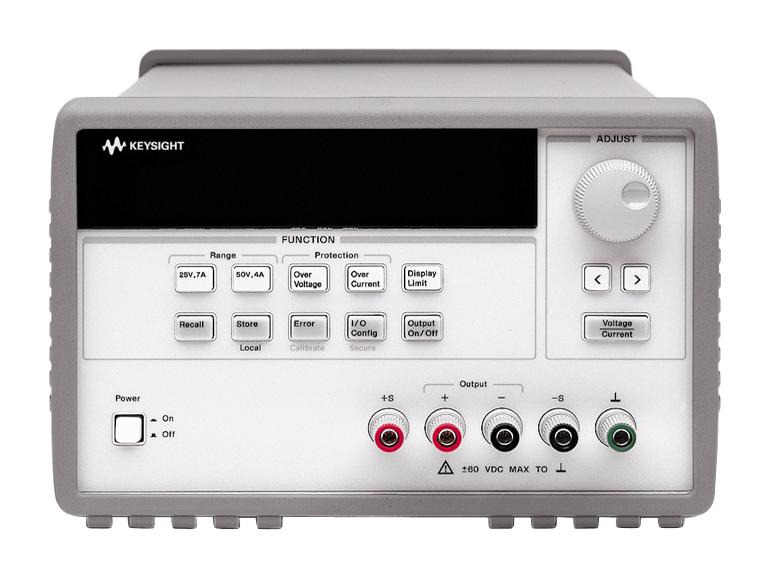

KEYSIGHT TECHNOLOGIES E3633A programmable power supply
The Keysight E3633A is a 120W single-output programmable power supply suitable for manual and automated testing environments. It offers low noise, precise voltage and current regulation, and remote sensing capabilities to eliminate voltage drops across leads. Equipped with GPIB and RS-232 interfaces, it supports easy remote control and data acquisition. The unit includes save and recall functions, overvoltage and overcurrent protections, along with front and rear output terminals for flexible wiring options. Its reliable performance makes it ideal for testing, power management, and R&D applications, ensuring consistent and accurate results.
KEYSIGHT TECHNOLOGIES E3633A programmable power supply Specifications:
- Output Power: 120W
- Output Voltage: 0 to +25V, 0 to -25V (dual range options)
- Output Current: up to 4A
- Load Regulation: < 0.01% + 2 mV
- Line Regulation: < 0.01% + 2 mV
- Ripple and Noise (20Hz-20MHz): < 350 uVrms / 3 mVpp
- Normal Mode Voltage Noise: < 350 uVrms / 3 mVpp
- Normal Mode Current Noise: < 2 mArms
- Common Mode Current: < 1.5 pArms
- Voltage Programming Accuracy: 0.05% + 20 mV
- Current Programming Accuracy: 0.15% + 4 mA
- Remote Sensing: Available
- Dimensions: 213 x 133 x 348 mm (8.4 x 5.2 x 13.7 inches)
- Weight: 9.5 kg (21 lbs)
- Safety Certifications: CSA 22.2 No. 231, IEC 1010-1, CE Marked
- Environment: 100 Vac to 230 Vac input, 47-63Hz
Buy the Keysight Series E363xA Power Supply: E3633A
Purchase the Keysight E3633A programmable power supply online today to ensure precise voltage and current regulation for your testing and power management needs. With low noise, remote sensing capabilities, and comprehensive protections, this 120W single-output unit offers excellent performance for R&D, testing, and manufacturing environments. Easy remote control via GPIB and RS-232 interfaces, along with save and recall functions, make it ideal for demanding applications. Order now for fast delivery and reliable operation in your critical testing setups.
Buy Keysight E3633A now and experience accurate voltage regulation, remote sensing, and reliable testing performance.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES E3633A?
You can click on the BUY or RFQ button to purchase E3633A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part E3633A?
You can download the E3633A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of E3633A?
KEYSIGHT TECHNOLOGIES
