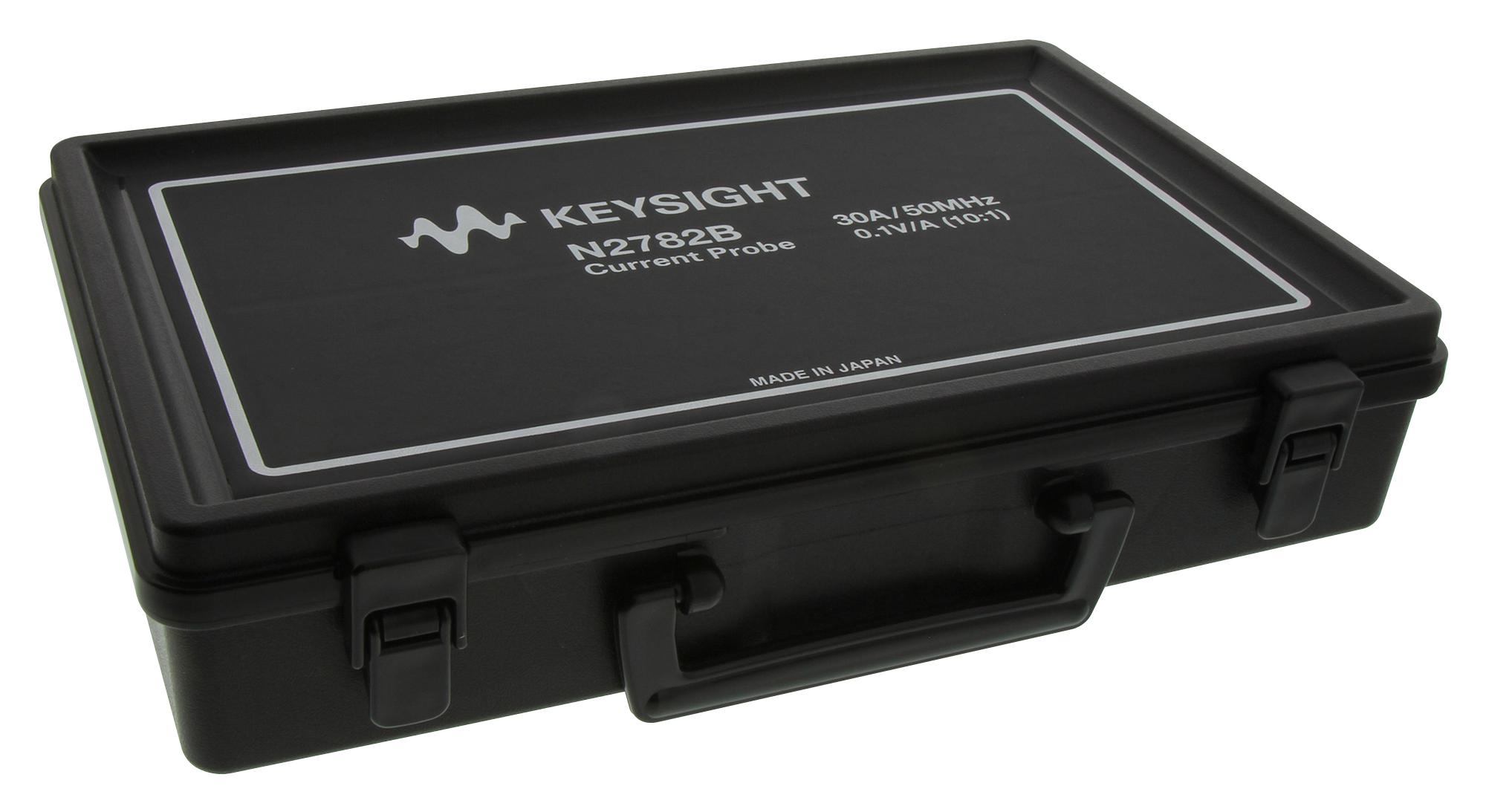

KEYSIGHT TECHNOLOGIES N2782B Current Probe
The N2782B current probe is compatible with any oscilloscope equipped with a high-impedance BNC input. It offers accurate and reliable measurements of both AC and DC currents up to 30 Arms continuous, utilizing hybrid technology that combines a Hall effect sensor and an AC current transformer. The probe features a flat frequency response from DC to 50 MHz, low noise, and low insertion loss, making it ideal for measuring steady-state and transient currents in applications such as motor drives, switching power supplies, inverters, controllers, disk drives, LCD displays, electronic ballasts, and current amplifiers driving inductive loads. Additional features include overload protection to prevent damage during excessive input, a 'demagnetize' button to eliminate residual magnetism, and direct connection to high-impedance oscilloscope BNC inputs. External power supply options allow up to three probes to be powered simultaneously.
KEYSIGHT TECHNOLOGIES N2782B Current Probe Specifications:
- Bandwidth: DC to 50 MHz
- Maximum continuous current: 30 Arms RMS
- Peak current (non-continuous): 50 A peak
- Lowest measurable current: 5 mA at +3% accuracy
- Output voltage: 0.1 V/A (10:1)
- Maximum input voltage: 300 V CAT II
- Input Impedance: Not specified
- Response time (risetime): 7 ns or less
- Demagnetize button to remove residual magnetism
- Compatible with high-impedance BNC scope inputs
- Overload protection to prevent damage
- External power supply: N2779A, supports up to 3 probes
- Power supply voltage: 12 V DC, 2.5 A
- Physical construction: Split core design
- Dimensions and physical details: Not specified
Buy the Keysight N2782B – Reliable Current Monitoring for Industrial Applications
Purchase the Keysight N2782B current probe online now and enjoy precise measurements of AC and DC currents up to 30 Arms. Its hybrid Hall-effect and transformer technology ensures reliable, accurate readings with low noise and broad frequency range from DC to 50 MHz. The split core design allows easy clamping on conductors, while overload protection prevents damage during excessive input. Compatible with high-impedance BNC oscilloscopes, it includes a 'demagnetize' function to eliminate residual magnetism, and the external power supply supports multiple probes simultaneously for versatile use.
Get Keysight N2782B today—built for precision and long-lasting durability in current measurements across industrial and laboratory environments.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES N2782B?
You can click on the BUY or RFQ button to purchase N2782B from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N2782B?
You can download the N2782B datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of N2782B?
KEYSIGHT TECHNOLOGIES
