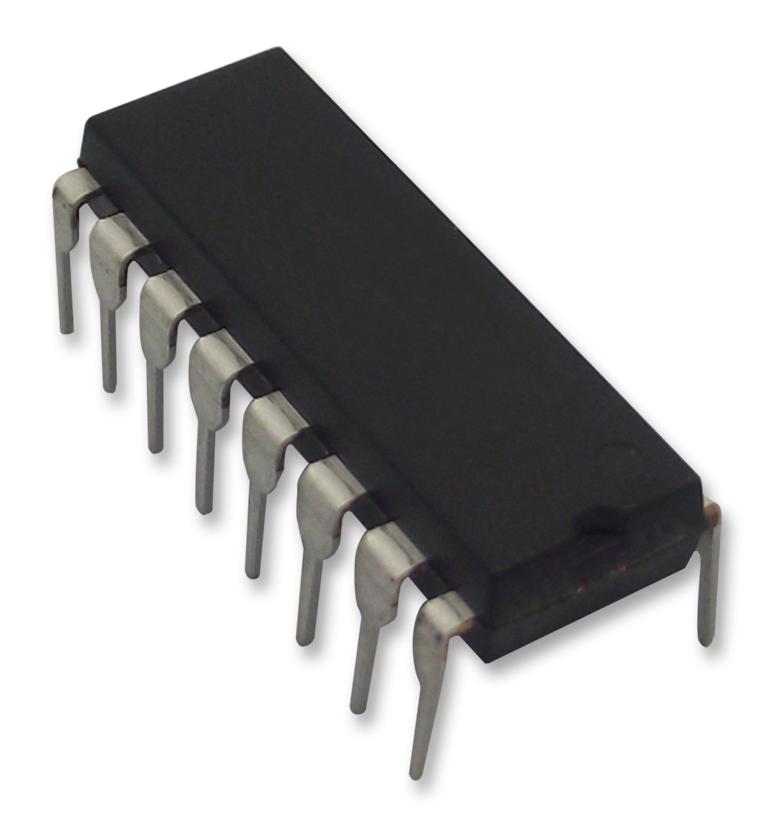

MAXIM INTEGRATED / ANALOG DEVICES DG509ACJ Analog Multiplexer
The DG509ACJ+ is a monolithic CMOS analog multiplexer housed in a 16-pin DIP package. It features four differential channels (two of eight), offering rapid enable switching times and significantly lower leakage currents, which results in lower power consumption—ideal for portable applications. The device is designed to be latch-up proof, ensuring it does not fail if the power supply is turned off while signals are present. It supports a supply voltage range of ±4.5V to ±18V and operates within an ambient temperature range of 0°C to 70°C. The multiplexer provides break-before-make switching, improved second-source availability, symmetrical bidirectional operation, and TTL/CMOS compatible logic and enable inputs. It is a plug-in upgrade for industry-standard DG508A/DG509A series, suitable for signal processing and various electronic applications. Please note that lead times are extended due to high market demand, and the product is exempt from discounts.
MAXIM INTEGRATED / ANALOG DEVICES DG509ACJ Analog Multiplexer Specifications:
- Supply Voltage Range: ±4.5V to ±18V
- Operating Temperature: 0°C to 70°C
- Channels: Four differential (two of eight)
- Package Types: 16-pin DIP, Wide SO, Narrow SO, CERDIP
- On-Resistance: Typical 130-450Ω
- Leakage Current: Max ±0.5-2 nA
- Switching Time: 0.6 to 1.0 μs
- Break-Before-Make Switching
- Bidirectional, symmetrical operation
- Logic Compatibility: TTL and CMOS
- Latch-up proof design
- Lower power consumption suitable for portable devices
