MAXIM INTEGRATED / ANALOG DEVICES MAX14693ATP Power Limiter
The MAX14693 power limiter is an advanced, high-accuracy device designed for adjustable overvoltage, undervoltage, and overcurrent protection in industrial, control, and high-power systems. Featuring a low 31mΩ on-resistance integrated FET, it supports input voltages from +5.5V to +58V, with reverse-current and thermal shutdown protection. It offers programmable current limits up to 6A, dual-stage startup, and external voltage threshold adjustments for OVLO and UVLO. Packaged in a compact 20-pin TQFN, it ensures reliable performance across temperatures from -40°C to +125°C, safeguarding sensitive downstream circuitry.
MAXIM INTEGRATED / ANALOG DEVICES MAX14693ATP Power Limiter Specifications:
- Input Voltage Range: +5.5V to +58V
- Reverse-Current Blocking: Enabled with RIPEN high
- Overcurrent Limit: Adjustable up to 6A
- On-Resistance: 31mΩ typical
- Temperature Range: -40°C to +125°C
- Package: 20-pin TQFN (5mm x 5mm)
- Thermal Shutdown: Active at 165°C, hysteresis 10°C
- Protection Features: Overvoltage lockout, undervoltage lockout, thermal foldback
- Fault Indicator (FLAG): Open-drain output for fault conditions
- Supply and enable inputs: HVEN capable of 58V, EN active high
- External resistor divider for OVLO and UVLO thresholds
- Startup Timing: Dual-stage current limiting at startup
- Output Capacitance: 4.7μF ceramic recommended for stability
- VSet resistor: for programming current limit up to 6A
- Designed for high-power and industrial control applications

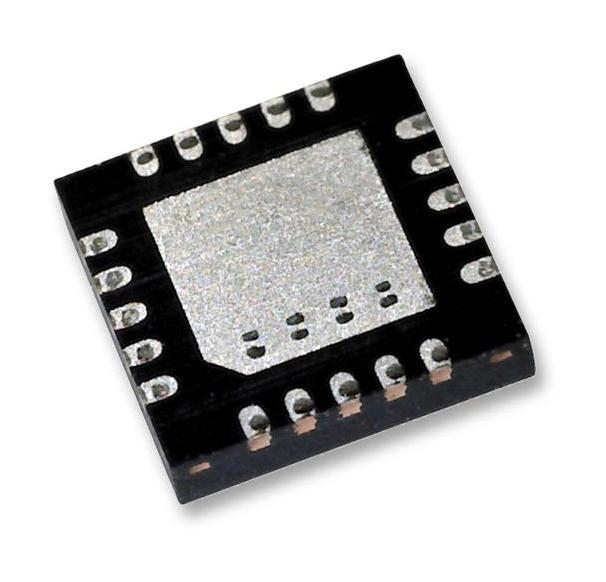

Buy the Maxim Series MAX14693 Power Limiter: MAX14693ATP
Secure your system with the Maxim Series MAX14693 power limiter, offering adjustable overcurrent and overvoltage protection up to 58V. With a low 31mΩ on-resistance, thermal shutdown, reverse-current blocking, and programmable thresholds, it ensures reliable performance across a wide temperature range. Its compact 20-pin TQFN package facilitates easy integration into industrial, automation, and high-power applications. Designed for robustness and precision, the MAX14693 is ideal for safeguarding sensitive downstream circuitry while optimizing thermal and electrical performance. Purchase online today for dependable system protection.
Get Maxim MAX14693ATP today—built for precision, robust protection, and reliable operation in industrial and high-power systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX14693ATP?
You can click on the BUY or RFQ button to purchase MAX14693ATP from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX14693ATP?
You can download the MAX14693ATP datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX14693ATP?
MAXIM INTEGRATED / ANALOG DEVICES
