MAXIM INTEGRATED / ANALOG DEVICES MAX15006DATTV High-Voltage Linear Regulator
The MAX15006/MAX15007 are high-voltage, ultra-low quiescent-current linear regulators suitable for automotive and battery-powered systems. These devices operate from 4V to 40V input, delivering up to 50mA output current with only 10µA quiescent current at no load, thanks to their internal p-channel pass device. The MAX15007 features an enable pin for on/off control, while models have fixed 3.3V or 5V outputs or an adjustable voltage from 1.8V to 10V. They include short-circuit and thermal shutdown protections, operate over -40°C to +125°C, and come in space-saving 6-pin TDFN and 8-pin SO packages, supporting automotive, industrial, and telecom applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX15006DATTV High-Voltage Linear Regulator Specifications:
- Input Voltage Range: 4V to 40V
- Output Current: Guaranteed 50mA
- Quiescent Current: 10µA (No Load), 90µA (Full Load)
- Output Voltages: Fixed 3.3V or 5V, Adjustable 1.8V to 10V
- Dropout Voltage: 300mV to 600mV depending on model
- Operating Temperature Range: -40°C to +125°C
- Protection: Short-circuit and thermal shutdown

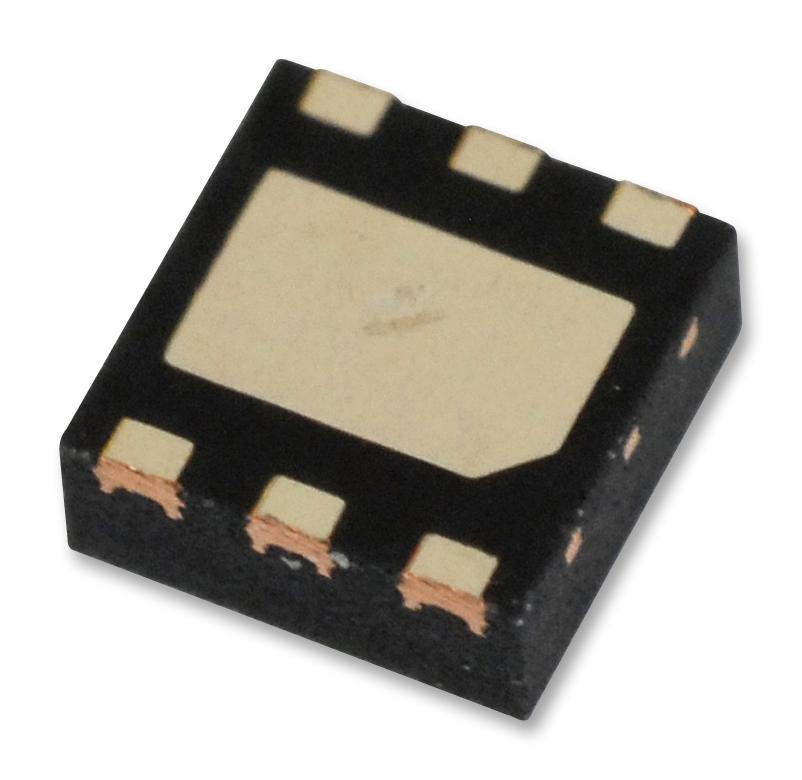

- Packages: 6-pin TDFN and 8-pin SO, thermally enhanced
Buy the Maxim Series MAX15006 MAX15007 Ultra-Low Quiescent-Current Linear Regulators: MAX15006DATTV
Choose the Maxim Series MAX15006DATTV ultra-low quiescent-current linear regulator for your automotive, industrial, or telecom system. With a wide input range of 4V to 40V and guaranteed 50mA output current, it provides stable voltage regulation with minimal power consumption. The device features thermal and short-circuit protection, operates over -40°C to +125°C, and comes in compact 6-pin TDFN or 8-pin SO packages. Effortlessly incorporate this dependable regulator to enhance your system's performance and reliability, available for online purchase now.
Order your Maxim Series MAX15006DATTV ultra-low quiescent-current linear regulator today and ensure reliable power regulation in your automotive and industrial projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX15006DATTV?
You can click on the BUY or RFQ button to purchase MAX15006DATTV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX15006DATTV?
You can download the MAX15006DATTV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX15006DATTV?
MAXIM INTEGRATED / ANALOG DEVICES
