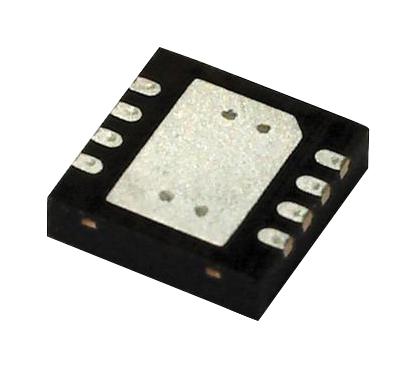

MAXIM INTEGRATED / ANALOG DEVICES MAX16058ATA29T Supervisory Circuit
The MAX16058 is a multi-functional ultra-low-power supervisory circuit based on CMOS technology, designed to monitor a system voltage and provide a reliable reset output. It features a push-pull reset output, capacitor-adjustable reset timeout, and a watchdog timer mode with extendable periods. Ideal for battery-powered devices like smartphones, MP3 players, and portable medical equipment, it ensures system stability during power fluctuations. The device operates over -40°C to +125°C, consumes only 125nA, and offers configurable thresholds from 1.575V to 4.625V, making it highly suitable for space-constrained systems requiring reliable power supervision.
MAXIM INTEGRATED / ANALOG DEVICES MAX16058ATA29T Supervisory Circuit Specifications:
- Supply Voltage Range: 1.1V to 5.5V
- Supply Current: 125nA (typ)
- Reset Thresholds: 1.575V to 4.625V in ~100mV increments
- Reset Output: Push-Pull type
- Temperature Range: -40°C to +125°C
- Package: 8-pin TDFN
- Capacitor-Adjustable Reset Timeout: 39pF to 4.7μF
- Capacitor-Adjustable Watchdog Timeout: 2275pF to 0.54μF
- Operating Temperature: -40°C to +125°C
- Detection and monitoring of voltage variations with immunity to transients
Buy the Maxim Series MAX16058 Supervision Circuit: MAX16058ATA29T
Purchase the Maxim MAX16058ATA29T online today—engineered for ultra-low power voltage monitoring, featuring configurable reset and watchdog timers. This high-reliability supervisory device ensures your portable and battery-powered systems remain stable during power fluctuations, providing immediate reset responses when needed. With a compact 8-pin TDFN package and operation across -40°C to +125°C, it is ideal for space-constrained applications like mobile devices, medical monitors, and portable electronics. Secure your system's robustness by ordering the MAX16058ATA29T online now.
Get Maxim MAX16058ATA29T today—built for precision and long-lasting durability in portable electronics.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX16058ATA29T?
You can click on the BUY or RFQ button to purchase MAX16058ATA29T from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX16058ATA29T?
You can download the MAX16058ATA29T datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX16058ATA29T?
MAXIM INTEGRATED / ANALOG DEVICES
