MAXIM INTEGRATED / ANALOG DEVICES MAX2112EVKIT RF Tuner Evaluation Kit

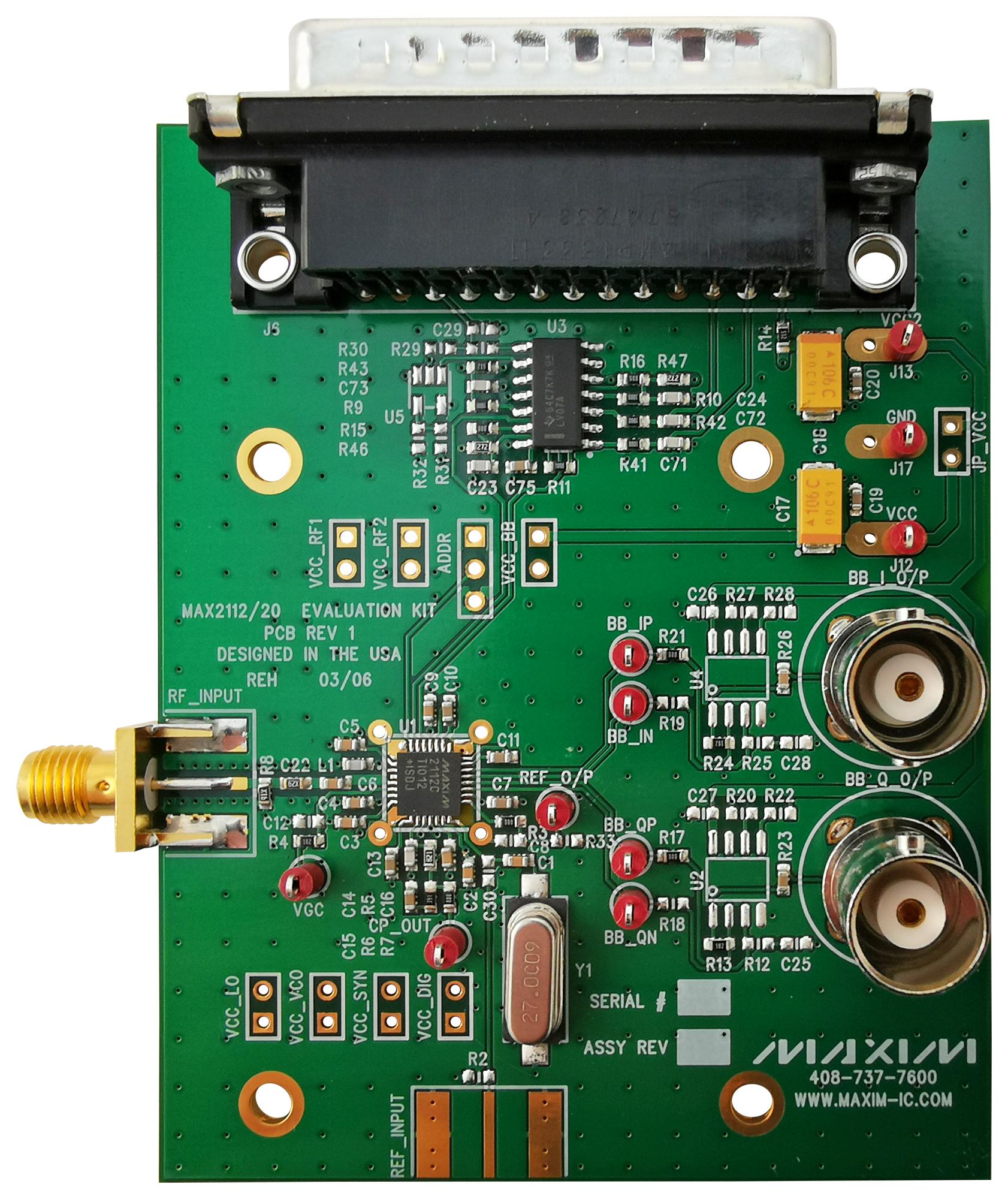

The MAX2112 evaluation kit simplifies testing and evaluation of the MAX2112 direct-conversion tuner IC. Fully assembled and factory tested, it features SMA and BNC connectors for easy input and output connections, a 3.3V single supply, and integrated PC control software. The kit is ideal for RF and baseband signal analysis, providing convenient access to critical signals and adjustable gain control. It supports measurement and development of the tuner’s performance with minimal assembly, making it suitable for engineers working on RF front-end designs and communication systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX2112EVKIT RF Tuner Evaluation Kit Specifications:
- RF Input Connector: SMA, 50Ω
- Baseband Output Connector: BNC
- Supply Voltage: 3.3V ±5%
- Current Supply: Up to 160mA for Vcc, SOWA for Vec
- Supported Frequency Range: up to 2.175GHz
- Control Interface: I²C 2-wire
- Fully assembled and factory tested
- Includes matched circuitry for RF input impedance conversion
- Test equipment required: RF signal generator, spectrum analyzer, oscilloscope, PC with Windows OS
- PCB with controlled impedance traces, star power distribution, and ground vias for optimal RF performance
- PC control software available for register configuration and tuning
- Common connector types: SMA edge-mount, BNC, 25-pin headers, and test points
- Exposed paddle soldered to ground plane for heat dissipation
- Recommended layout with minimal RF trace length and proper grounding
Buy the Buy Maxim Integrated MAX2112EVKIT Part Number MAX2112EVKIT Online
Enhance your RF design projects with the MAX2112 evaluation kit, offering a fully assembled, tested platform featuring SMA and BNC connectors, a 3.3V power supply, and PC software. Designed for RF engineers, this kit simplifies testing of the MAX2112 direct-conversion tuner IC, supporting frequencies up to 2.175GHz. With integrated matching circuitry and easy setup, it enables accurate analysis of tuner performance, noise figure, and RF-to-baseband conversion, accelerating development and prototyping for wireless communications, IoT, and RF system integration.
Order your Maxim MAX2112 evaluation kit today and quickly evaluate the direct-conversion tuner’s performance in RF applications with ease.
