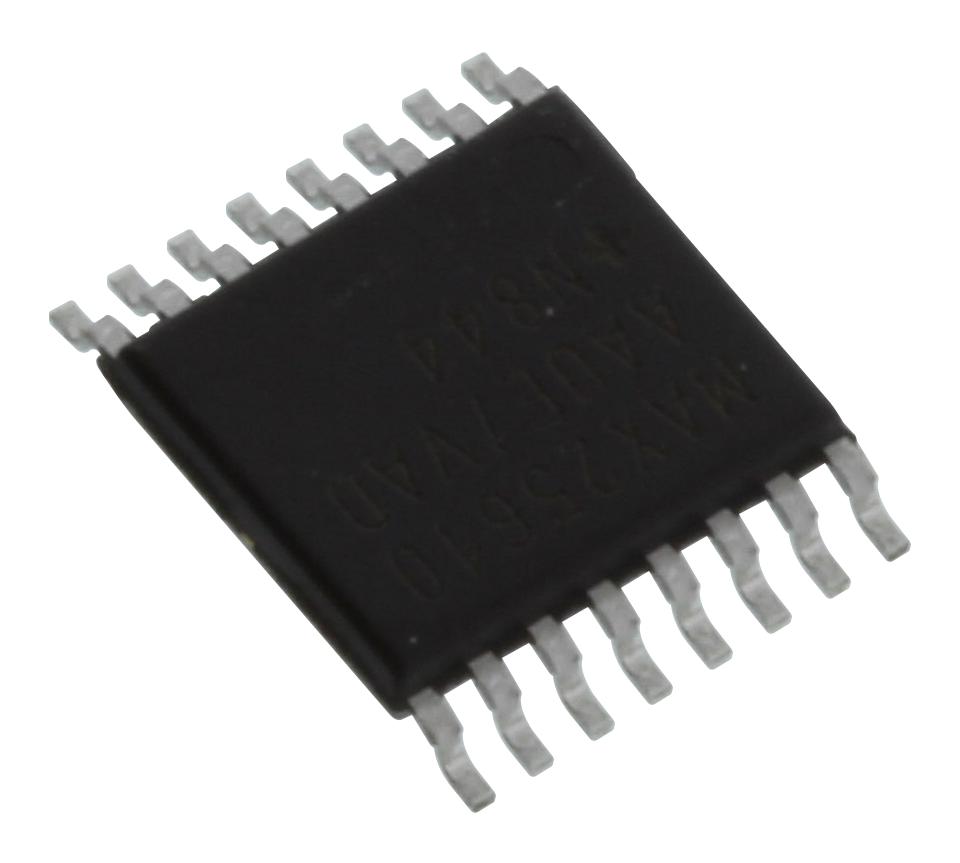

MAXIM INTEGRATED / ANALOG DEVICES MAX25610AAUEV LED Driver
The MAX25610A is a fully synchronous LED driver designed for high-power LED applications with flexible buck, buck-boost, and boost configurations. It integrates two 60mΩ power MOSFETs, supporting analog and PWM dimming, and features cycle-by-cycle current limiting, overvoltage, open-string, short-circuit protection, and thermal shutdown. The device includes dual 5V regulators for internal and external circuitry, operates at high switching frequencies (400kHz or 2.2MHz), and withstands automotive load dump events up to 40V, making it ideal for automotive and industrial lighting where high efficiency, reliability, and safety are critical.
MAXIM INTEGRATED / ANALOG DEVICES MAX25610AAUEV LED Driver Specifications:
- Input Voltage Range: 5V to 36V
- Switching Frequency: 400kHz (MAX25610A), 2.2MHz (MAX25610B)
- Output Voltage Regulation: 4.89V to 5.4V for Vcc, 4.0V to 5.3V for Veg
- Operating Temperature Range: -40°C to +125°C
- Peak Inductor Current: 4.25A (limit)
- Power Dissipation: 2088mW (TSSOP-EP), 2667mW (TQFN)
- Thermal Resistance: Junction-to-Ambient 38.3°C/W (TSSOP), 30°C/W (TQFN)
- Package Options: 16-pin TSSOP-EP, 16-pin TQFN
- Protection Features: Overvoltage, short-circuit, thermal shutdown
- Dimming Types: Analog (REFI pin), PWM (PWMDIM pin), frequency via PWMFRQ
- Load Dump Voltage Tolerance: Up to 40V
Buy the Maxim MAX25610A – Reliable LED Driver for Industrial Applications
Purchase the Maxim MAX25610A LED driver online today—engineered for high-power automotive and industrial lighting, offering flexible topologies, fast transient response, robust protection features, and superior efficiency. With integrated MOSFETs, support for PWM and analog dimming, and operation over -40°C to +125°C, it ensures reliable performance in demanding environments. Easy to integrate, space-saving, and ideal for modern lighting systems, order now to enhance your projects with a proven, durable LED driver tailored for high reliability.
Get Maxim MAX25610A today—built for precise current regulation, high efficiency, and long-lasting durability in automotive and industrial lighting projects.
