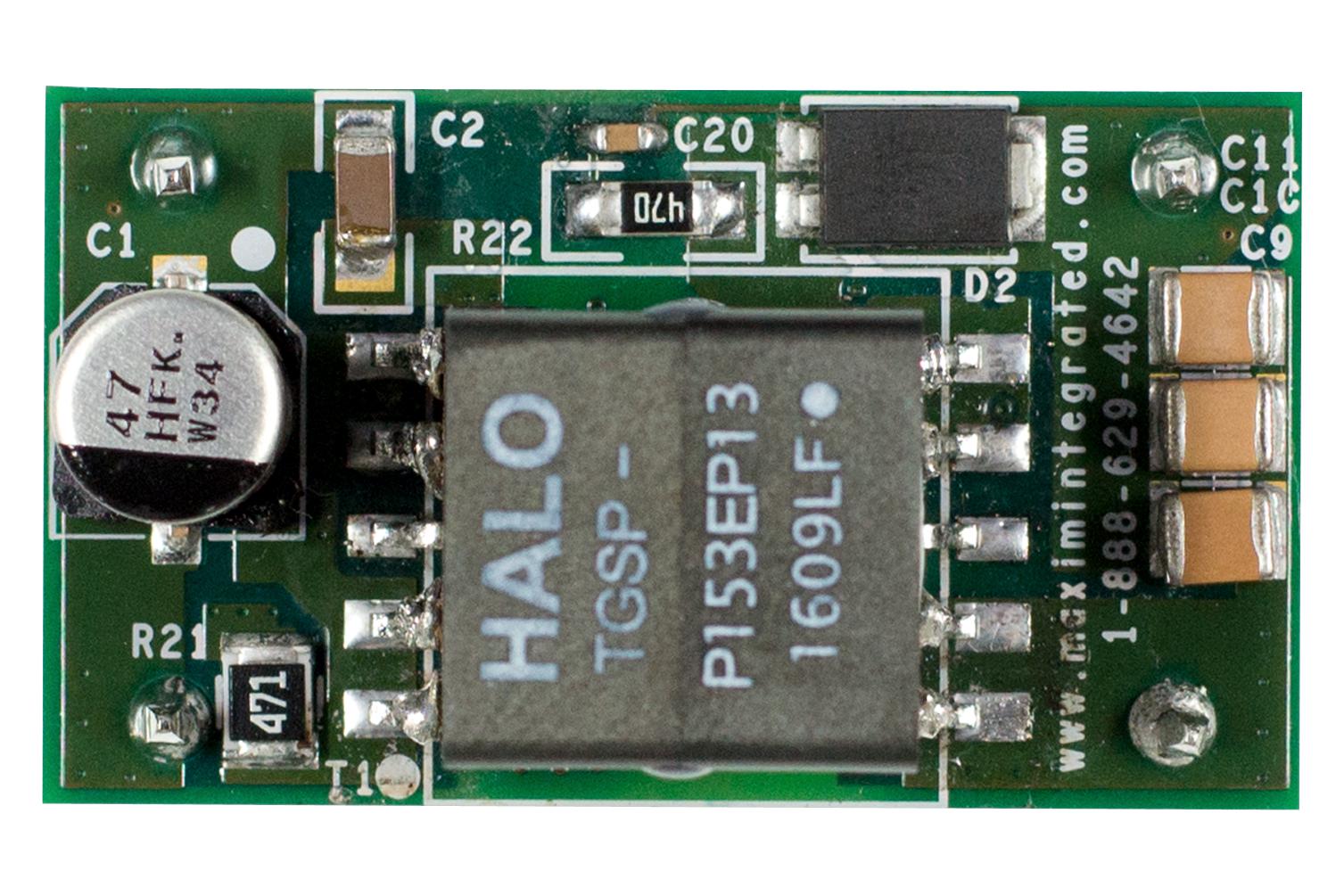

MAXIM INTEGRATED / ANALOG DEVICES MAXREFDES113A Flyback Power Converter
The MAXREFDES113A is a compact, efficient 24V input flyback converter module providing a 12V output at 1.6A with 20W power. It features easy transformer selection from qualified vendors and through-hole pins for quick integration in industrial applications. Utilizing the MAX17596 controller, it offers wide input voltage range (17V-36V), programmable switching frequency up to 1MHz, and low EMI with spread-spectrum operation. Designed for industrial control, telecom power, and embedded systems, it delivers high efficiency and robust, reliable power regulation in a small form factor.
MAXIM INTEGRATED / ANALOG DEVICES MAXREFDES113A Flyback Power Converter Specifications:
- Input Voltage Range: 17V to 36V
- Output Voltage: 12V
- Output Current: 1.6A
- Power Output: 20W
- Input Power: 24V (nominal)
- Switching Frequency: Programmable from 100kHz to 1MHz (set at 200kHz)
- Maximum Efficiency: 87%
- Isolation: Galvanic with qualified transformers
- Components: Includes MAX17596 peak-current-mode controller
- Protection: UVLO, OVP, soft-start, overcurrent and thermal shutdown
- Physical Size: Approximately 20mm x 35mm
- Connector Type: Through-hole pins for system integration
- Application Environments: Industrial control, telecom, servers, embedded systems
- Thermal Management: Designed for robust operation in adverse environments
Buy the Maxim MAXREFDES113A – Reliable Flyback Power Converter for Industrial Applications
Purchase the Maxim MAXREFDES113A flyback power converter online now to enjoy high efficiency, robust operation, and easy integration into your industrial, telecom, or embedded systems. This compact 24V input module delivers 12V at 1.6A with minimal external components, supporting wide input voltage range and offering programmable switching frequency for optimized performance. Designed for demanding environments, it ensures reliable power regulation, overcurrent and thermal protection, and flexible mounting options. Get your high-quality, ready-to-use power solution to streamline your project and reduce development time today.
Order your Maxim MAXREFDES113A flyback converter module today and enhance your industrial control and telecom power systems with reliable, high-efficiency power solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAXREFDES113A?
You can click on the BUY or RFQ button to purchase MAXREFDES113A from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAXREFDES113A?
You can download the MAXREFDES113A datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAXREFDES113A?
MAXIM INTEGRATED / ANALOG DEVICES
