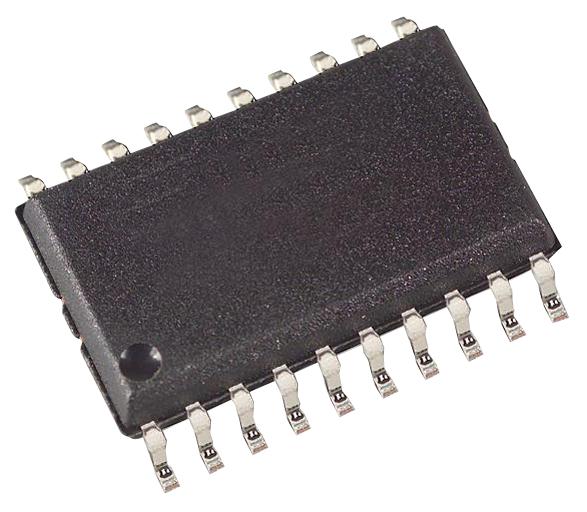

MAXIM INTEGRATED / ANALOG DEVICES MX7545AKEWP Digital-to-Analog Converter
The MX7545AKEWP+ is a CMOS 12-bit buffered multiplying digital-to-analog converter housed in a 20-pin WSOIC package. It features a 150 ns write pulse width, enabling compatibility with fast 8- and 16-bit microprocessors. The device loads data via a single 12-bit word when both chip select and write inputs are low. When these inputs are connected low, the input data latches are transparent, permitting unbuffered operation. The DAC is TTL/CMOS compatible and operates at a 15V supply voltage. It is suitable for applications such as motion control, automatic test equipment, microcontroller-controlled systems, programmable gain amplifiers, and programmable power supplies.
MAXIM INTEGRATED / ANALOG DEVICES MX7545AKEWP Digital-to-Analog Converter Specifications:
- Resolution: 12 Bits
- Supply Voltage Range: 4.75V to 5.25V
- Operation Temperature: -40°C to 85°C
- Output Error: ±3LSB maximum gain error
- Linearity: INL within ±0.5LSB
- Differential Non-Linearity: within ±1LSB
- ESD Protection: Over 6KV
- Input Interface: TTL and CMOS compatible
- Output Load: 100kΩ in parallel with 10pF
- Settling Time: 150 ns
- Pulse Width: 150 ns maximum
- Data Loading: 12-bit wide word
- Operation Mode: Unbuffered when inputs connected low
- Application Areas: Motion control, test equipment, microcontroller systems, programmable amplifiers, power supplies
Buy the Buy Maxim MX7545AKEWP+ Part Number MX7545AKEWP Online
Purchase the Maxim MX7545AKEWP+ online today to enjoy its 12-bit precision and fast 150 ns write pulse time, ideal for motion control, testing, automation, and programmable power systems. This CMOS 12-bit DAC offers TTL/CMOS compatibility, operates at 15V, and features enhanced ESD protection over 6KV. Its unbuffered operation when inputs are low simplifies integration into microprocessor-controlled systems. The device ensures high linearity within ±0.5LSB and gain accuracy of ±3LSB, delivering reliable performance across a wide temperature range from -40°C to 85°C. Order now to enhance your automation and testing equipment with a proven, durable component.
Get Maxim MX7545AKEWP+ today—built for precision and long-lasting durability with fast interface timing and high accuracy.
