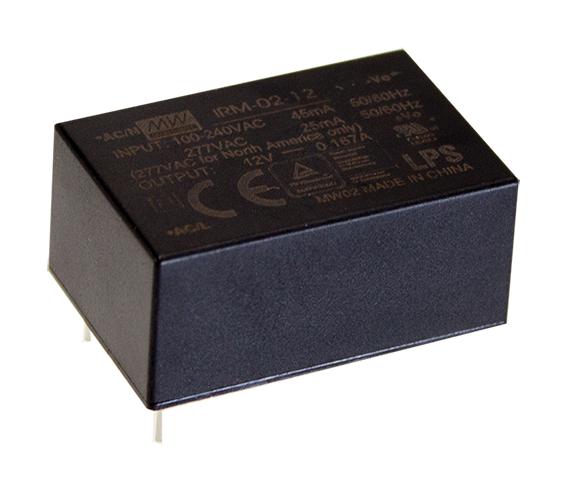

MEAN WELL IRM0233 Miniature Power Supply
IRM-02 is a compact, 2W encapsulated AC-DC power supply module designed for electronic and industrial automation equipment. It features a universal input range of 85–305VAC, high efficiency up to 77%, and low no-load consumption below 0.075W. The robust phenolic case and fully-potted silicone offer excellent heat dissipation, vibration resistance up to 5G, dust, and moisture protection. It complies with EN55022 Class B, ensuring minimal electromagnetic interference, and supports overload and overvoltage protections. Ideal for PCB mounting or SMD applications, providing reliable power in industrial and electronic projects.
MEAN WELL IRM0233 Miniature Power Supply Specifications:
- Output Power: 2W
- Input Voltage Range: 85–305VAC
- Output Voltage Options: 3.3V, 5V, 9V, 12V, 15V, 24V
- Rated Current: 600mA (3.3V), 400mA (5V), 222mA (9V), 167mA (12V), 133mA (15V), 83mA (24V)
- Ripple & Noise: 150mVp-p (up to 12V), 200mVp-p (15V and 24V)
- Efficiency: up to 77%
- No Load Power Consumption: <0.075W
- Isolation Voltage: 3kVAC (O/P to I/P)
- Operating Temperature: -30°C to +85°C
- Vibration Resistance: Up to 5G
- Regulation: Line 5%, Load 0.5%
- EMC Compliance: EN55022 Class B
- Protection: Overload, Overvoltage, Short Circuit
- Dimensions: 33.7mm x 22.2mm x 15mm; SMD Style: 33.7mm x 22.2mm x 4.6mm
- Humidity: 20–90% RH non-condensing
- Certifications: UL60950-1, TUV EN60950-1
Buy the Mean Well Series IRM Series 2W Power Supply: IRM-02
Secure your electronic projects by purchasing the reliable infrared IRM-02 power supply online today. This compact, high-efficiency power module with universal input ensures dependable operation in industrial and automation equipment. Designed with robust protection features against overcurrent and overvoltage, it offers excellent EMI compliance and vibration resistance up to 5G. Easy to install with PCB or SMD mounting, this certified power supply guarantees long-term performance in harsh environments, making it an ideal choice for various industrial and electronic applications.
Order your Mean Well Series IRM-02 2W power supply today and ensure reliable, efficient power for industrial automation and electronic projects.
Frequently Asked Questions
Where can I buy MEAN WELL IRM0233?
You can click on the BUY or RFQ button to purchase IRM0233 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IRM0233?
You can download the IRM0233 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IRM0233?
MEAN WELL
