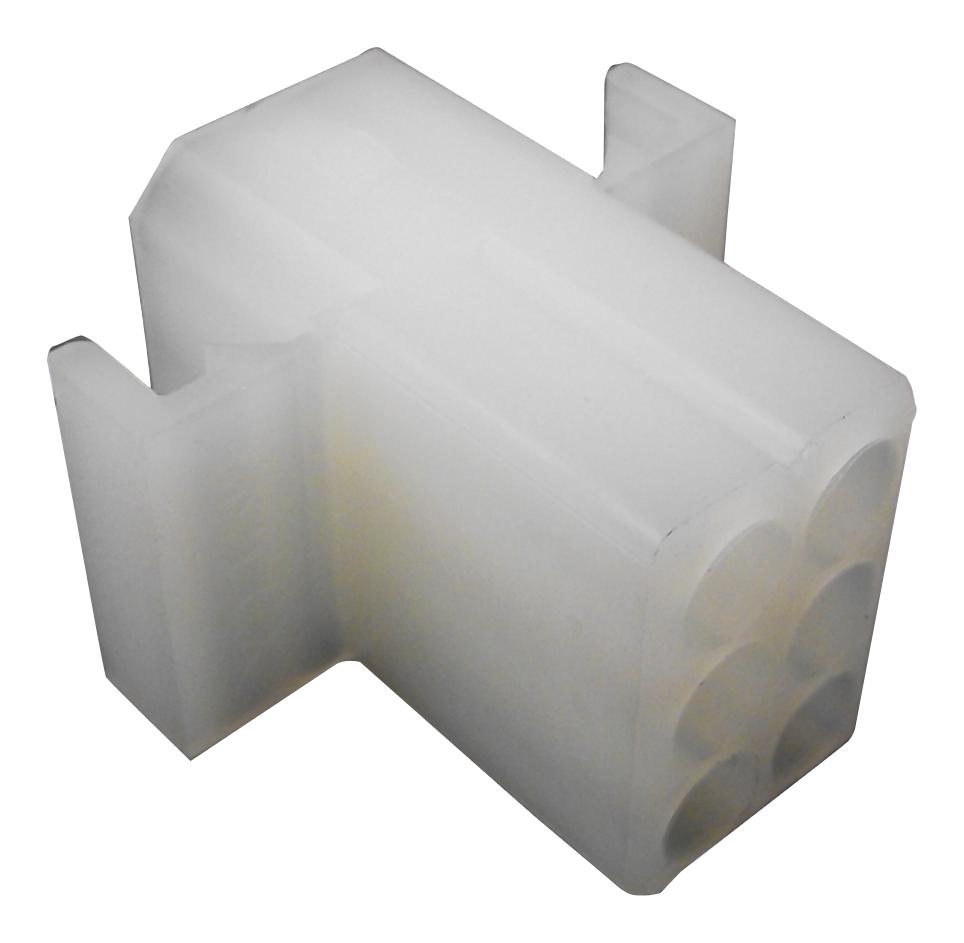

MOLEX 03091062 Power Connector
The standard .093-inch pin and socket connectors consist of a 2.36mm diameter receptacle housing designed for reliable electrical connections. This dual-row, 6-circuit housing features natural nylon resin, operating temperature range from -40°C to +105°C, and maximum current per contact of 11.0A. Certified by CSA and UL, this RoHS-compliant, green low-halogen product is suitable for power and wire-to-wire applications with a panel mount design, stackability, and compatibility with various crimp terminal types. Ideal for electronic assemblies requiring secure and efficient connections in industrial and commercial equipment.
MOLEX 03091062 Power Connector Specifications:
- Diameter: 2.36mm
- Number of circuits: 6
- Material: Nylon resin
- Color: Natural
- Flammability: 94V-2
- Operating temperature: -40°C to +105°C
- Maximum current per contact: 11.0A
- Gender: Receptacle
- Panel mount: Yes
- Stackable: Yes
- Packaging: Bag
- Pitch: 5.03mm
- RoHS compliant: Yes
- UL and CSA certified: Yes
Buy the Molex Series 1261 Power Connector: 03091062
Discover the Molex power connector designed for secure, high-current, dual-row applications. Featuring a 2.36mm diameter, natural nylon housing, and certifications including UL and CSA, this connector offers dependable performance from -40°C to +105°C. Its stackable design and RoHS compliance make it suitable for industrial and electronic device use. With a maximum current of 11.0A per contact and easy panel mounting, this connector ensures reliable and efficient wiring solutions for your projects. Buy online now for quality and durability.
Get Molex 03091062 today—built for durability, high current capacity, and reliable electrical connections in your electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 03091062?
You can click on the BUY or RFQ button to purchase 03091062 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 03091062?
You can download the 03091062 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 03091062?
MOLEX
