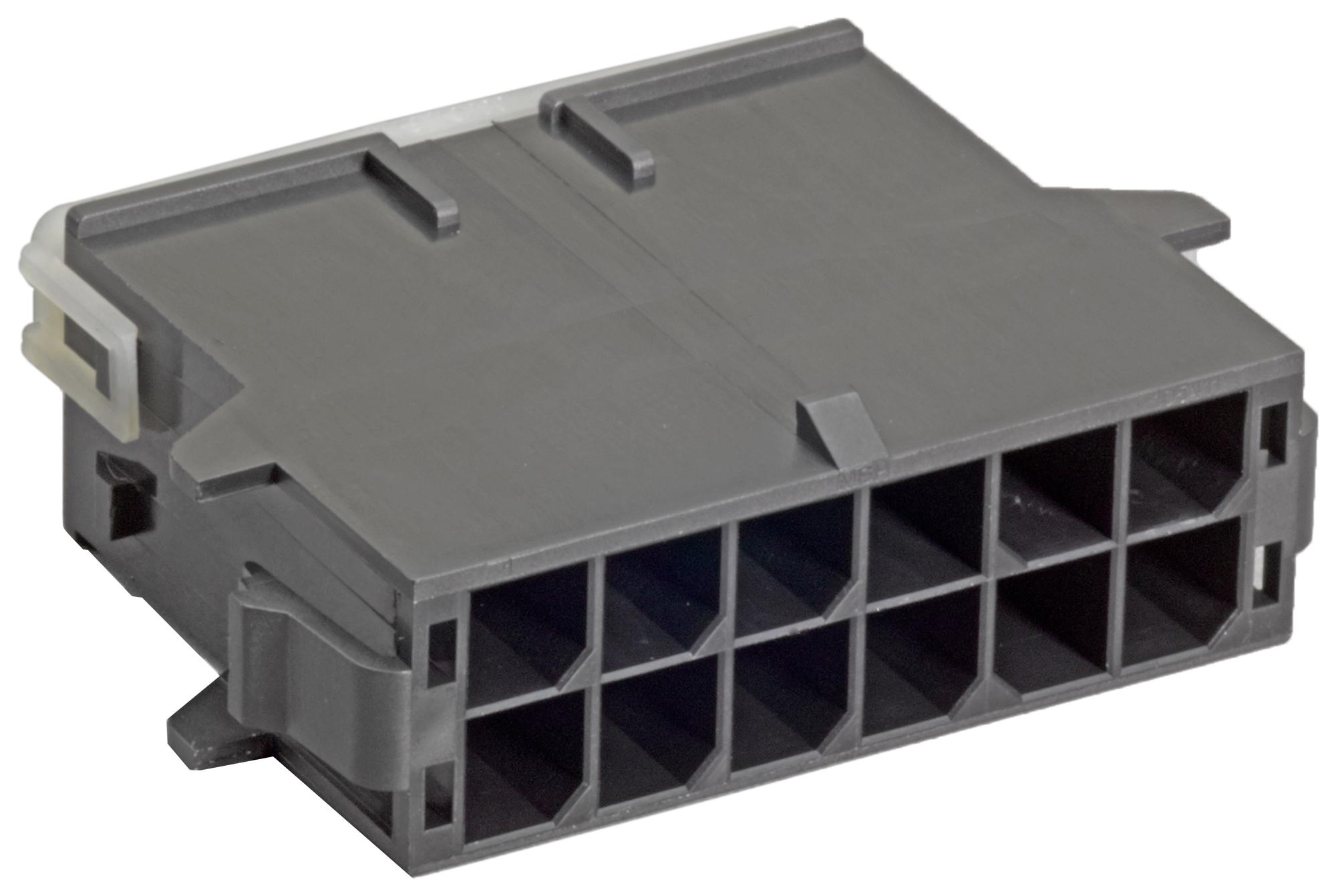

MOLEX 1054110106 Power Connector
Mega-Fit Power Connectors are high-current modules designed for industrial and electrical applications, delivering 25.0A per circuit with fully protected header pins and receptacle terminals. These connectors feature a 5.70mm pitch, positive locking housing, and dual-row and single-row systems suitable for power-dense designs. They support hot-plugging at 48V/25.0A, incorporate tangless terminals for damage reduction, and meet European glow-wire standards for safety. Compatible with various receptacles and terminals, these connectors excel in automation, HVAC, industrial machinery, and telecommunication industries, ensuring reliable and secure power connections.
MOLEX 1054110106 Power Connector Specifications:
- Voltage: 600V
- Current: 25.0A per circuit
- Contact Resistance: 6 millichms
- Dielectric Withstanding Voltage: No Breakdown
- Leakage Current: <5mA
- Insulation Resistance: 1,000 Megohms
- Contact Insertion Force: 6.8N max
- Contact Retention Force: 30N
- Unmating Force: 6.5N (gold-plated), 6.8N (tin-plated)
- Durability: 2 Megohms change from initial
- Housing Material: UL 94 V-0, glow wire compliant
- Contact Material: High-conductivity copper with gold or tin plating
- PCB Thickness Compatibility: 1.60mm and 2.40mm
- Operating Temperature Range: -40°C to +150°C
Buy the Molex 1054110106 – Reliable Power Connectors for Industrial Applications
Discover the reliable power connectors designed for industrial and automation systems offering high current capacity, secure locking features, and versatile compatibility. These connectors support hot-plugging and meet European glow-wire safety standards. Whether used in manufacturing equipment, HVAC, or telecom infrastructure, they provide consistent power delivery and ease of installation. Order online now for fast, secure delivery of power modules that ensure safety and durability in all your critical applications, maximizing performance and long-term reliability.
Order your Molex Series105411 Power Connectors today and ensure dependable, high-current power delivery for your industrial and electronic projects.
