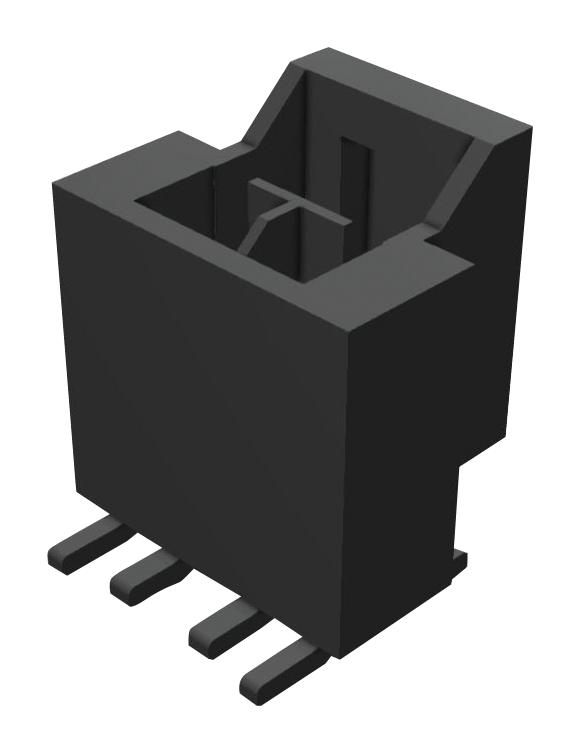

MOLEX 1054311102 Nano-Fit Power Connector
The Nano-Fit Vertical Header is a surface-mount, single-row connector with a 2.50mm pitch. It features a robust 0.76um tin plating, black color, and is glow-wire capable, making it suitable for power applications. Designed for easy PCB mounting, it supports up to 6.5A current and 250V AC voltage, with durability rated for multiple mating cycles. Its compact design makes it ideal for various electronic and power distribution uses, combining reliability with ease of installation and compliance with RoHS standards.
MOLEX 1054311102 Nano-Fit Power Connector Specifications:
- Pitch: 2.50mm
- Number of Circuits: 2
- Color: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 0.540g
- Durability (mating cycles max): 25 cycles
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Glow-Wire Capable: Yes
- Surface Mount: Yes
- Packaging: Embossed Tape on Reel
- Terminator Interface: 2.50mm pitch
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Polarity to PCB: Yes
Buy the Buy Molex Nano-Fit Power Connectors Part Number 1054311102 Online
Purchase the Molex Nano-Fit Vertical Header 1054311102 online for secure, reliable power and signal connections. Its 2.50mm pitch and single-row design facilitate easy PCB mounting in compact electronic assemblies. With a 6.5A current rating, 250V AC voltage capacity, and glow-wire capability, it ensures safety and durability. Made from high-quality materials like brass and liquid crystal polymer, it withstands -40°C to +105°C temperatures. Ideal for power modules, automation, and consumer electronics, the Nano-Fit connector offers ease of installation and RoHS compliance for environmentally friendly solutions.
Buy Molex 1054311102 now and experience unmatched reliability and high-performance power connectivity for your electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 1054311102?
You can click on the BUY or RFQ button to purchase 1054311102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054311102?
You can download the 1054311102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054311102?
MOLEX
