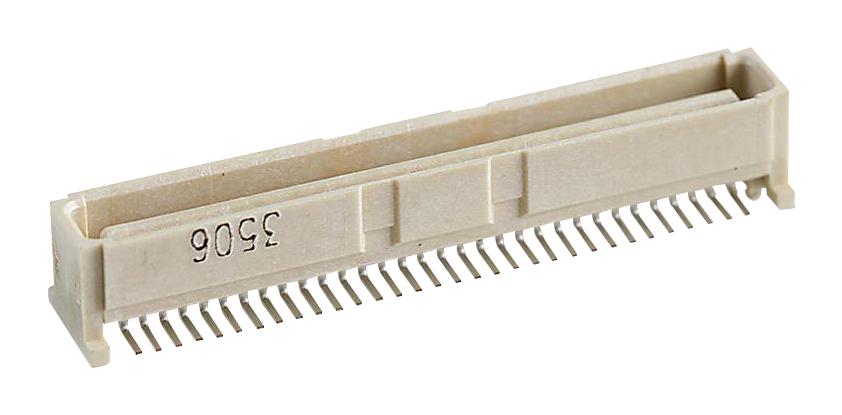

MOLEX 714361164 Mezzanine Connector
The 1.00mm Mezzanine (IEEE 1386) Plug is a surface-mount, dual-row connector designed for high-density applications. It features a vertical stacking design with 64 circuits, a height of 7.35mm when unmated, and PCB locator pegs for precise mounting. Built with phosphor bronze contacts plated in gold and tin, it supports current up to 1A and voltage up to 100V. Certified by UL and CSA, it operates within a temperature range of -55°C to +85°C, and is RoHS and REACH compliant, ideal for board-to-board signal connections in space-constrained electronics.
MOLEX 714361164 Mezzanine Connector Specifications:
- Pitch: 1.00mm
- Number of Circuits: 64
- Height (unmated): 7.35mm
- Material - Metal: Phosphor Bronze
- Plating Mating: Gold
- Plating Termination: Tin
- Temperature Range: -55°C to +85°C
- Current: 1.0A
- Voltage: 100V
- Flammability: 94V-0
- RoHS: Compliant
- REACH SVHC: Not Contained
- Process Temperature max: 260°C Reflow
- Packaging: Tube
- Orientation: Vertical
- Electrical: Signal, Board-to-Board connection
- Color - Resin: Natural
- Lock to Mating Part: No
- Stackable: Yes
Buy the Molex Series 71436 1.00mm Mezzanine: 714361164
Purchase the Molex 714361164 Mezzanine Connector online today and benefit from robust design, certified safety standards, and reliable electrical performance. Ideal for space-efficient PCB connections in electronic assemblies, this connector features 64 circuits, gold and tin plating for durability, and a temperature range suitable for various environments. Its vertical stackable design and PCB locator pegs ensure precise placement and stable connections, making it perfect for high-density applications that demand quality and long-term stability in electronic manufacturing.
Buy Molex 714361164 now and experience unmatched reliability and performance with high-quality board-to-board signal connections.
Frequently Asked Questions
Where can I buy MOLEX 714361164?
You can click on the BUY or RFQ button to purchase 714361164 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 714361164?
You can download the 714361164 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 714361164?
MOLEX
