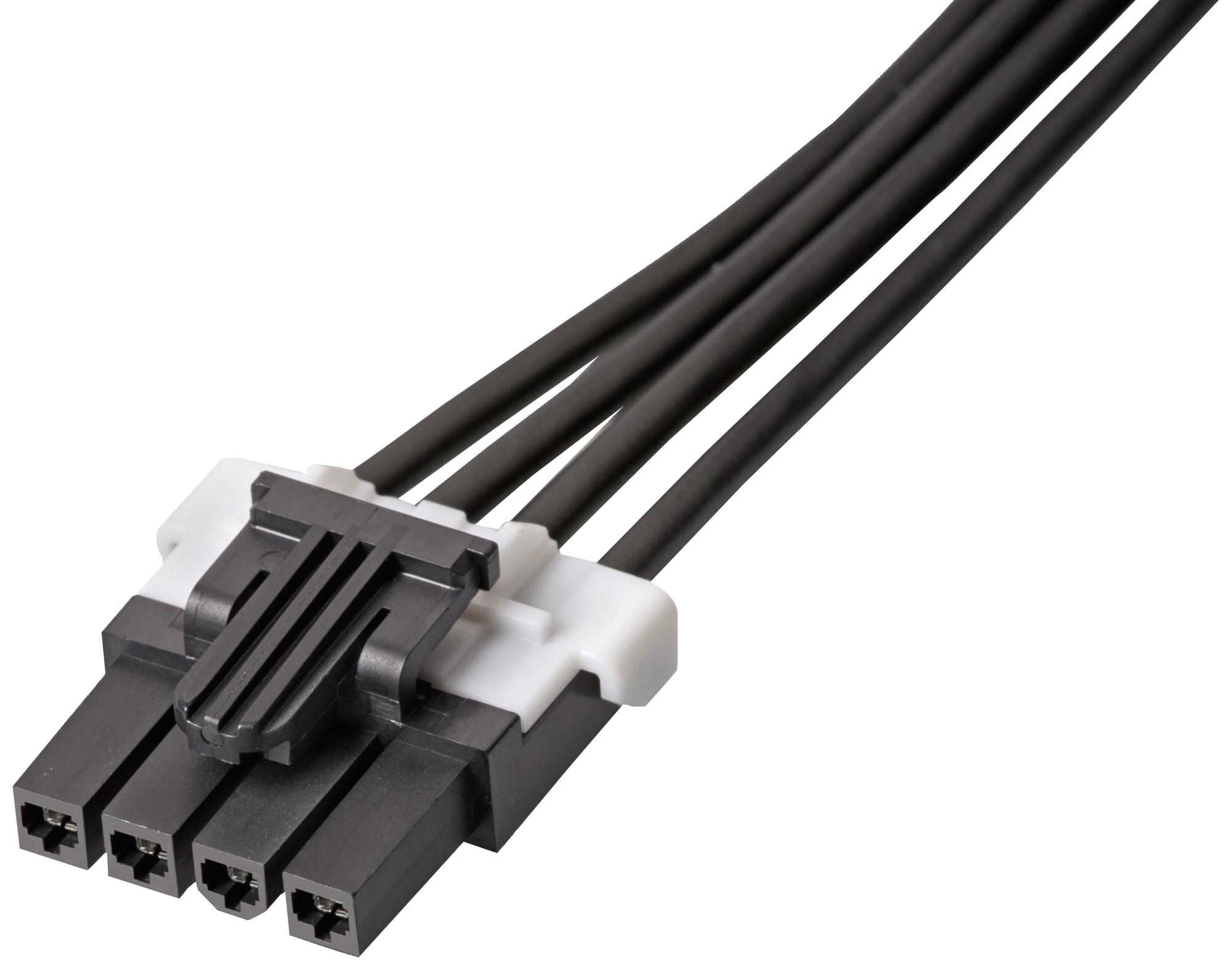

MOLEX 1451350400 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0400 is an Off-the-Shelf (OTS) Discrete Cable Assembly designed for power, wire-to-board, and wire-to-wire applications. It connects two Mini-Fit TPA2 connectors with a 75mm cable length and 4 circuits. Constructed with phosphor bronze and nylon materials, this assembly provides a durable and reliable connection. It is RoHS compliant and suitable for various industrial applications requiring secure and efficient power transmission.
MOLEX 1451350400 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2
- cable_length: 75.00mm
- circuits_loaded: 4
- color_resin: Black
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 11.022/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_maximum_per_contact: 11.0A
- voltage_maximum: 600V AC/DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with_housing: 200471, 200488, 5559, 5566, 5569
- drawing_number: 4000095326-000
