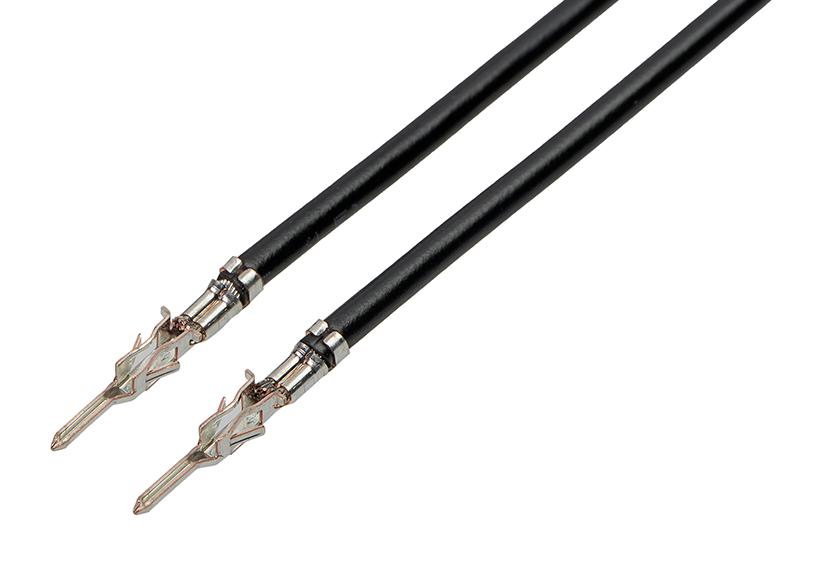

MOLEX 2147621223 Micro-Fit 3.0 Male-to-Male
The MOLEX 214762-1223 is a pre-crimped lead cable assembly designed for power and wire-to-wire applications. It utilizes Micro-Fit 3.0 male connectors on both ends, ensuring a secure and reliable connection. The gold plating on the mating interface enhances conductivity and corrosion resistance, while the tin plating on the termination interface facilitates easy soldering. This assembly is ideal for various industrial and commercial applications requiring robust and pre-terminated cable solutions.
MOLEX 2147621223 Micro-Fit 3.0 Male-to-Male Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Micro-Fit 3.0
- cable_length: 225.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Gold (Au) - 0.762µm min
- plating_termination: Tin - 2.540µm min
- net_weight: 2.655/g
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.85mm
- wire_size_awg: 18
- wire_cable_type: UL 10002
- current_max_per_contact: 8.5A
- upc: 193264574797
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per D(2020)4578-DC
- halogen_free: Yes
- low_halogen: No
- rohs_phthalates: Not Contained
- use_with_housings: Micro-Fit 3.0 Plug Housings (43020, 43640, 44300, 46625)
