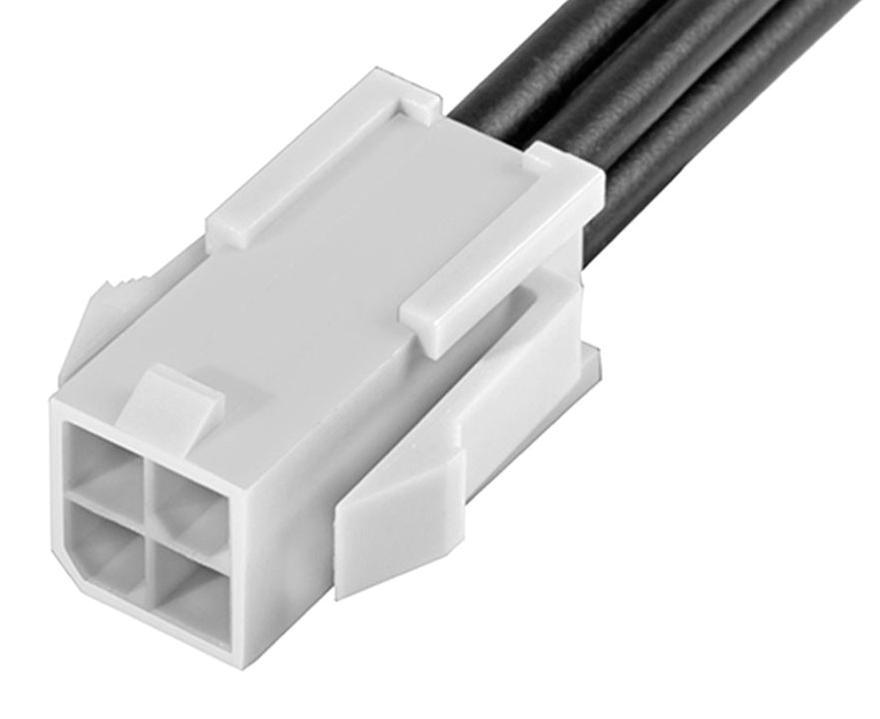

MOLEX 2153252042 Mini-Fit Jr. Female-to-Female
The MOLEX 215325-2042 is a Mini-Fit Jr. female-to-female cable assembly suitable for power applications, wire-to-board connections, and wire-to-wire assemblies. This assembly offers a robust connection with a dual-row design, gold plating on the mating interface for enhanced conductivity, and tin plating on the termination interface for reliable crimping. The black nylon resin construction provides durability and insulation. It is commonly used in industrial equipment, automotive systems, and consumer electronics where a secure and reliable power connection is required.
MOLEX 2153252042 Mini-Fit Jr. Female-to-Female Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr.
- cable_length: 300.00mm
- circuits_loaded: 4
- color_resin: Black
- gender: Female-Female
- lock_to_mating_part: Yes
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 30.384/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264589838
- material_info: Not Contained Per - D(2020)4578-DC (25 June 2020)
- halogen_free_status: Not Low-Halogen
- mates_with: 5559, 5566, 5569, 43810, 44068, 44281, 87427, 42404, 42440
- drawing_number: 2153252041-000
Buy the 215325-2042 MOLEX Mini-Fit Jr. Female-to-Female | myMectronic
Purchase the MOLEX 215325-2042 Mini-Fit Jr. Cable Assembly securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153252042?
You can click on the BUY or RFQ button to purchase 2153252042 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153252042?
You can download the 2153252042 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153252042?
MOLEX
