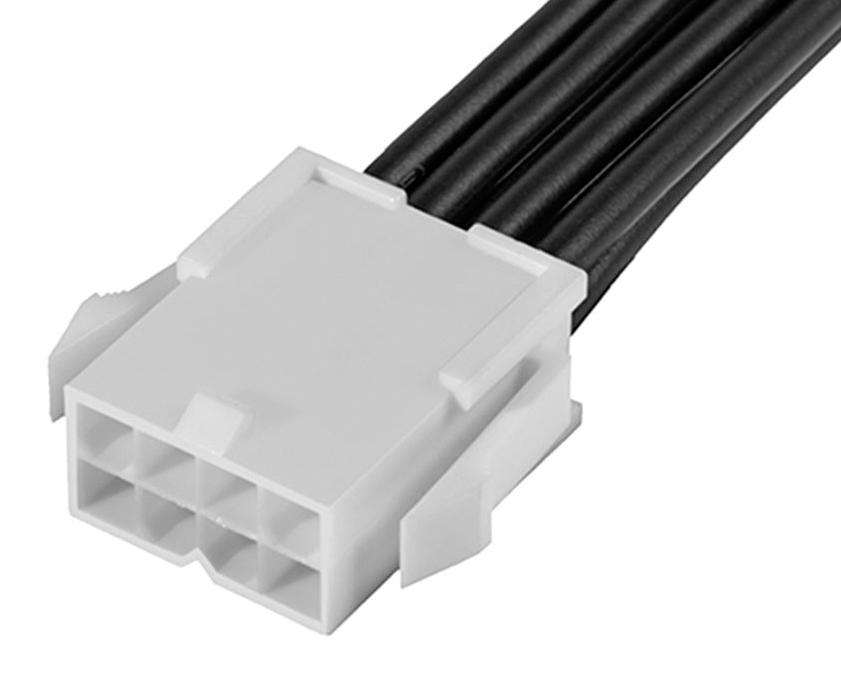

MOLEX 2153252083 Mini-Fit Jr. Cable Assembly
The MOLEX 215325-2083 is a Mini-Fit Jr. female-to-female off-the-shelf (OTS) cable assembly designed for power, wire-to-board, and wire-to-wire applications. This assembly offers a dual-row configuration with 8 circuits and a 600mm length, making it suitable for various industrial and commercial applications. The gold plating on the mating interface ensures reliable connectivity, while the tin plating on the termination interface facilitates secure crimping or compression connections. Constructed with brass and nylon materials, this cable assembly provides durability and performance in demanding environments.
MOLEX 2153252083 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 600.00mm
- circuits_loaded: 8
- color_resin: Black
- gender: Female-Female
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Gold (Au)
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 111.036
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- upc: 193264589906
- series: 215325
- mates_with: ['5559 Dual Row', '5566 Vertical with Pegs', '5566 Vertical without Pegs', '5569 Right Angle Dual Row with Flanges', '5569 Right Angle Dual Row with Pegs', '43810', '44068', '44281', '87427', '42404', '42440']
- elv: Not Relevant
- rohs: Compliant
- china_rohs: Not Contained Per - D(2020)4578-DC (25 June 2020)
- halogen_free_status: Not Low-Halogen
