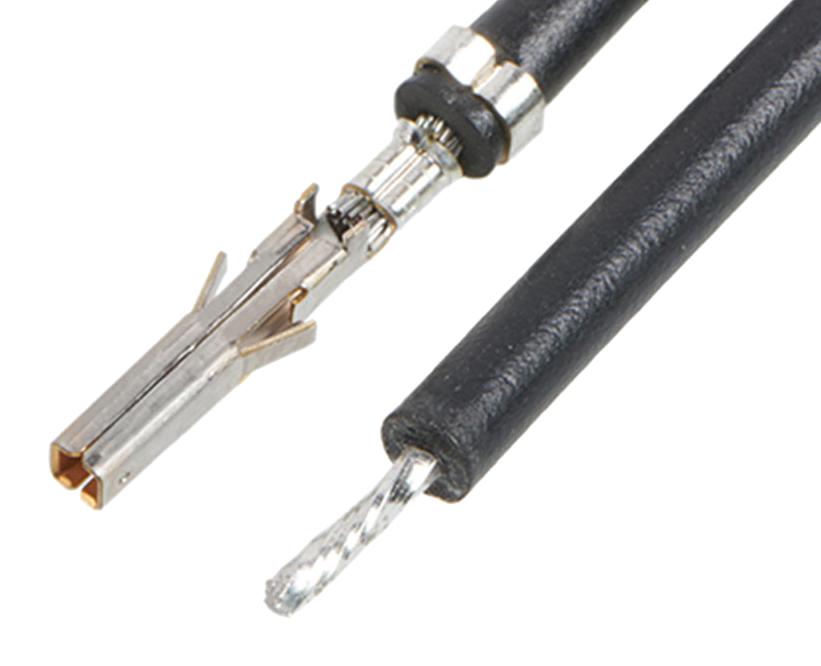

MOLEX 2153411221 Power Connector
The Mini-Fit Jr. Female-to-Pigtail is a pre-crimped lead assembly designed for power and wire-to-wire or wire-to-board applications. It features a 75 mm length, gold (Au) plating for reliable electrical contact, and is compatible with 16 AWG wire size insulation diameters from 1.80 to 3.10 mm. The black halogen-free, RoHS compliant resin housing ensures durability and safety. Made with brass metal and tin plating for secure termination, it supports a maximum current of 9.0A and voltage of 600V, suitable for various power distribution needs in industrial settings.
MOLEX 2153411221 Power Connector Specifications:
- Material: Brass with Gold (Au) plating
- Length: 75.00 mm
- Wire Size: 16 AWG
- Wire Insulation Diameter: 1.80-3.10 mm
- Voltage Rating: 600 V
- Current Rating: 9.0 A
- Color: Black
- RoHS Compliant
- Halogen-Free: Yes
- Termination Style: Crimp or Compression
- Housing Material: RoHS-compliant resin
- Net Weight: 2.147 g
- Assembly Type: Pre-crimped Lead
- Application: Power, Wire-to-Wire, Wire-to-Board
- Certification: RoHS, China RoHS
- Connector Compatibility: Mini-Fit Jr. Receptacle Housing
- Packaging: Bag
- Single Ended: Yes
Buy the Molex 2153411221 – Reliable Power Connectors for Industrial Applications
Purchase the Molex Power Connector online today—designed for industrial applications requiring reliable power connections. Its 75mm length, gold-plated contacts, and 16 AWG wire capacity ensure excellent electrical performance and durability. Suitable for wire-to-wire and wire-to-board configurations, it features a robust brass construction with tin plating for secure, low-resistance termination. Compliant with RoHS standards and halogen-free, this pre-crimped lead assembly supports up to 9.0A and 600V, making it an ideal choice for demanding power distribution systems in manufacturing and automation environments.
Get Molex 2153411221 today—built for precision and long-lasting durability in power distribution and industrial wiring.
