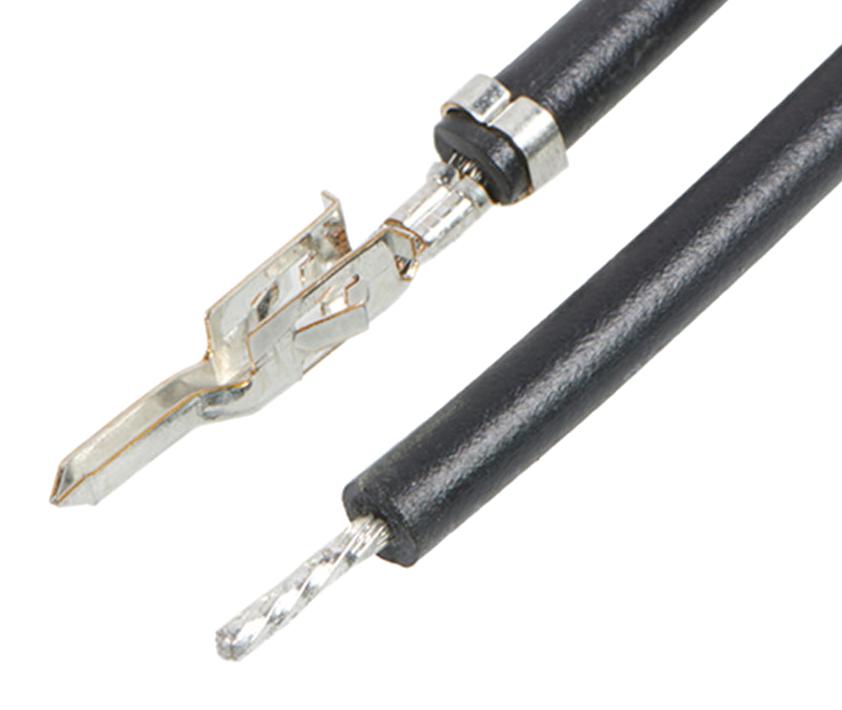

MOLEX 2153431113 Mini-Fit Jr. Pre-Crimped Lead
The MOLEX 215343-1113 is an off-the-shelf pre-crimped lead assembly, ideal for power and wire-to-wire connections. This assembly incorporates a Mini-Fit Jr. male connector transitioning to a pigtail, offering a convenient and reliable solution for various industrial applications. The tin plating ensures excellent conductivity and corrosion resistance, while the 18 AWG wire gauge supports a maximum current of 9.0A and a voltage of 600V. It is RoHS compliant and designed for easy integration into existing systems.
MOLEX 2153431113 Mini-Fit Jr. Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215343
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 225.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 3.901/g
- packaging_type: Bag
- end_type: Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 18
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264560165
- elv: Not Relevant
- rohs: China RoHS Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
