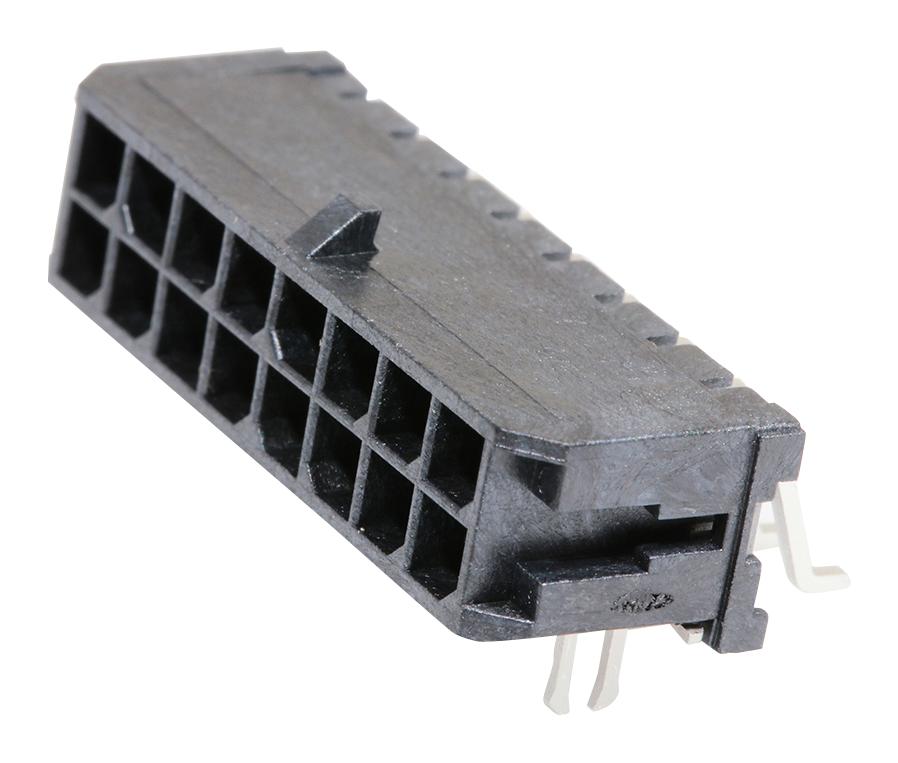

MOLEX 430451607 Power Connector
The Micro-Fit 3.0 Right-Angle Header is a high-performance power connector with a 3.00mm pitch, dual row, and 16 circuits. Made from high-temperature thermoplastic, it features gold-plated contacts, PCB retention clips, and is glow-wire capable, meeting safety standards. Designed for wire-to-board applications, it offers reliable electrical performance with a maximum current of 8.5A and voltage of 600V. Suitable for industrial and electronic device manufacturing, it ensures durability, safety, and ease of installation in various environments, including household and industrial electronics.
MOLEX 430451607 Power Connector Specifications:
- Material: High Temperate Thermoplastic
- Color - Resin: Black
- Circuits (Loaded): 16
- Circuits (Maximum): 16
- Pitch - Mating Interface: 3.00 mm
- Shrouded: Yes
- Stackable: No
- Surface Mount Compatible: Yes
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Material - Metal: Metal contacts with gold plating
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Net Weight: 2.398 g
- Number of Rows: 2
- Orientation: Right Angle
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Embossed Tape on Reel
- Width (mated height): 3.00mm
- Flammability: Glow Wire Capable, meet IEC standards
- Durability (mating cycles max): Fully
- Max. Cycles at Max. Process Temperature: 260°C for reflow
- Process Temperature max.: 260°C
- Terminations: Reflow soldering
Buy the Molex 0430451607 – Reliable Power Connector for Industrial Applications
Purchase the Molex Power Connector online today to ensure reliable power delivery in your electronic projects and industrial systems. This high-temperature thermoplastic connector features a 3.00mm pitch, dual rows with 16 circuits, and gold-plated contacts for optimal electrical performance and longevity. It meets international safety standards with glow-wire capability and is suitable for surface-mount applications. Designed for ease of installation, durability, and consistent connectivity, it’s the ideal choice for engineers and technicians seeking dependable power solutions for demanding environments.
Get Molex 0430451607 today—built for precision, high-temperature durability, and secure power connections in industrial environments.
