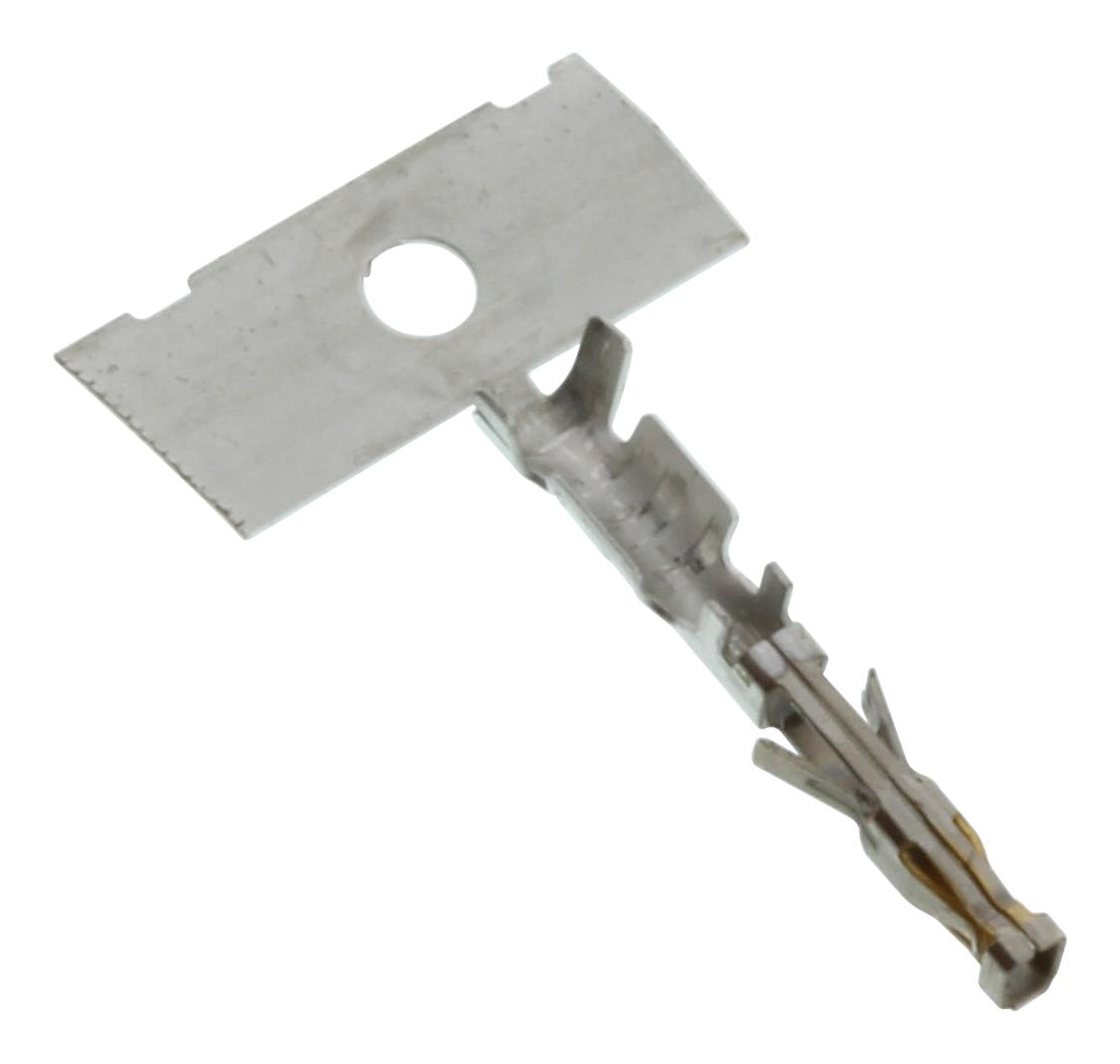

MOLEX 462355003 Micro-Fit High Mating Cycle Terminal
The Micro-Fit RMF high-mating cycle female crimp terminal is designed for reliable electrical connections with 26-30 AWG wires. Featuring selective gold over nickel plating, it ensures excellent conductivity and corrosion resistance. This terminal supports up to 250 mating cycles, offering 90% increased durability and reduced mating force by up to 50%, making it ideal for high-reliability electronic and power applications. Its robust construction includes copper-zinc-tin material and a crimp or compression termination interface, suitable for wire diameters up to 1.27 mm.
MOLEX 462355003 Micro-Fit High Mating Cycle Terminal Specifications:
- Gender: Female
- Material - Metal: Copper-Zinc-Tin
- Material - Plating Mating: Gold
- Material - Plating Termination: Nickel
- Wire Size AWG: 26, 28, 30
- Wire Insulation Diameter: 1.27mm max.
- Current - Maximum per Contact: 5.0A
- Durability (mating cycles max): 250
- Net Weight: 0.046 g
- Packaging Type: Reel
- Plating min - Mating: 0.381 um
- Plating min - Termination: 0.381 um
- Crimp or Compression: Crimp
- Application: Power, Wire-to-Board, Wire-to-Wire
- Applicable Standards: RoHS Compliant, EU ELV, Low-Halogen
Buy the Molex Series Micro-Fit Crimp Terminal: 462355003
Experience top-tier reliability with the Molex Micro-Fit High Mating Cycle Female Crimp Terminal. Designed for 26-30 AWG wires, it offers up to 250 mating cycles with a 90% increase in durability and reduced mating force by 50%. Its gold over nickel plating ensures excellent conductivity and corrosion resistance. Manufactured from copper-zinc-tin material, it features a crimp connection for secure and robust electrical contacts. Ideal for high-reliability applications in power and electronic systems, it ensures long-lasting performance and easy installation. Purchase online today for quality and durability.
Get Molex 462355003 today—built for precision and long-lasting durability in high-cycle electrical connections.
Frequently Asked Questions
Where can I buy MOLEX 462355003?
You can click on the BUY or RFQ button to purchase 462355003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 462355003?
You can download the 462355003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 462355003?
MOLEX
