MOLEX 2160101032 Datasheet & Stock

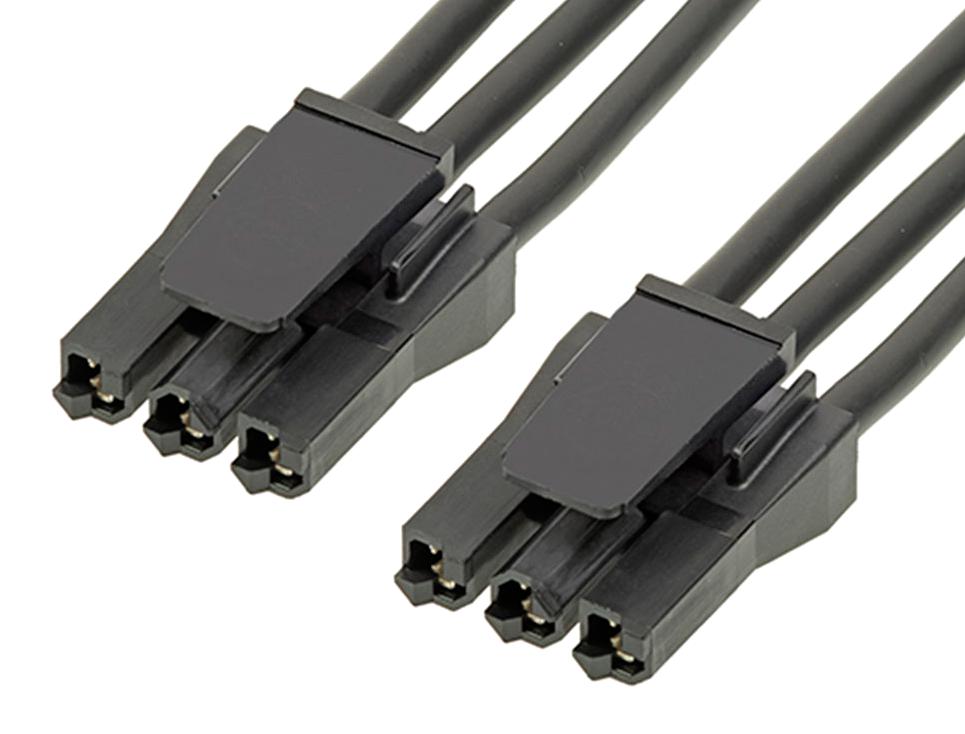

The 216010 series Super Sabre cable assemblies provide a reliable, off-the-shelf solution rated at 34A per blade and 600V. Designed for high-current and high-voltage applications, these assemblies feature a low-profile layout with a flat-blade terminal design offering four independent contact points for optimal electrical performance. The high-conductivity alloy terminals are silver-plated to ensure high performance and resistance to fretting corrosion. Equipped with positive latch and terminal position assurance (TPA) features, they securely maintain connections even in high-vibration environments. Fully isolated terminals on both sides protect against damage and shock. Suitable for various industries—including automotive, consumer electronics, medical, and telecommunications—they meet safety standards such as UL1977, UL60950, and USCAR-2 level 3. The nylon housing and copper contacts are built for durability, with operating temperatures up to +105°C, offering an economical alternative to gold-plated options, optimized for 10 to 12 AWG wires.

View 2160101032Datasheet [pdf]
