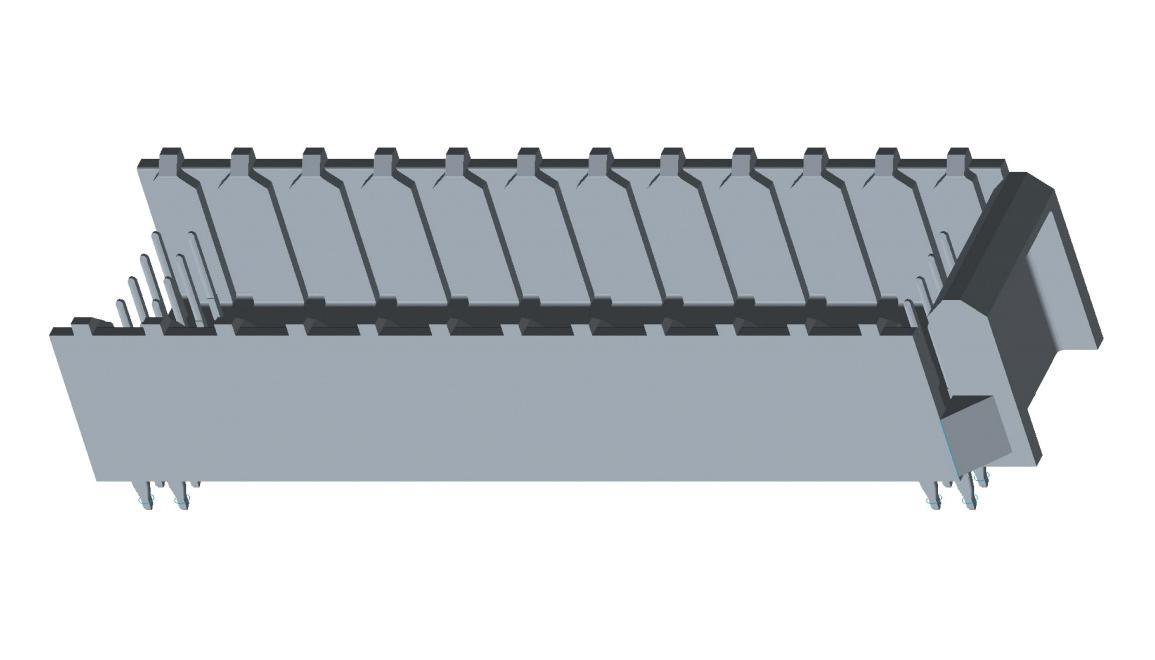

MOLEX 736431200 HDM Backplane Connector
The MOLEX 73643-1200 is a high-density HDM backplane connector system designed for robust board-to-board connections. This connector features 144 circuits and a vertical orientation, making it ideal for applications requiring high signal density and reliable performance. It utilizes a press-fit termination style and is constructed with phosphor bronze and gold-plated contacts for excellent conductivity and durability. The connector is RoHS compliant and suitable for demanding industrial environments where reliable data transmission is critical.
MOLEX 736431200 HDM Backplane Connector Specifications:
- circuits_loaded: 144
- circuits_maximum: 144
- color_resin: Black, Natural
- durability_mating_cycles_max: 250
- first_mate_last_break: No
- flammability: 94V-0
- material_metal: Phosphor Bronze
- plating_mating: Gold (0.762µm)
- plating_termination: Gold (0.051µm)
- material_resin: High Temperature Thermoplastic
- net_weight_g: 7.207
- number_of_columns: 24
- number_of_rows: 6
- orientation: Vertical
- pc_tail_length_mm: 3.50
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Tube
- pitch_mating_interface_mm: 2.00
- pitch_termination_interface_mm: 2.00
- polarized_to_pcb: No
- stackable: Yes
- surface_mount_compatible: Yes
- temperature_range_operating_c: -55 to +105
- current_maximum_per_contact_a: 1.0
- data_rate_gbps: 1.0
- real_signals_per_25mm: 75
- voltage_maximum_ac_v: 250
- lead_free_process_capability: N/A
