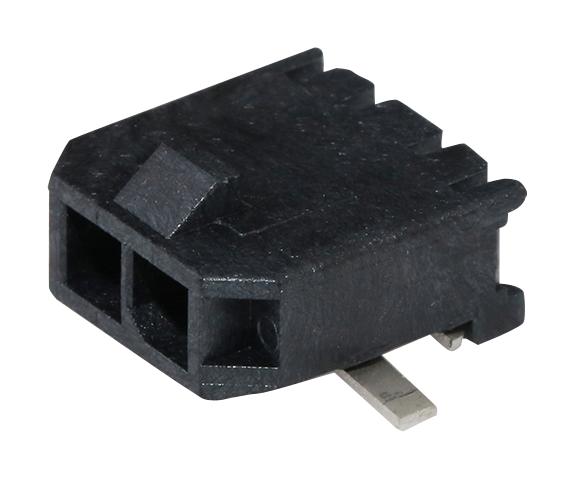

MOLEX 436500214 Power Connector
The Micro-Fit 3.0 Right-Angle Header features a 3.00mm pitch, single row, 2 circuits, with solder tabs, and a durable gold plating. Designed for wire-to-board power applications, it withstands high temperatures, up to +105°C, and is compliant with safety standards including UL and CSA certification. Made from high-temperature thermoplastic with a 94V-0 flammability rating, it offers reliable electrical connections with maximum current of 8.5A and voltage of 600V. The connector is shrouded, polarized, stackable, and suitable for surface mount technology, ensuring robust performance in demanding environments.
MOLEX 436500214 Power Connector Specifications:
- Pitch: 3.00mm
- Number of circuits: 2
- Circuit arrangement: Single row
- Color - Resin: Black
- Material - Resin: High Temperature Thermoplastic
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Maximum Current: 8.5A
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Durability: Up to 30 mating cycles
- Mating interface style: Surface Mount
- Packaging: Embossed Tape on Reel
- Terminement style: Reflow process compatible
Buy the Molex Series Micro-Fit 3.0: Power Connector with Solder Tab 436500214
Purchase the Molex Micro-Fit 3.0 power connector online today to ensure secure and efficient power delivery in your electronic projects. Designed with a 3.00mm pitch, single-row, 2 circuits, and gold-plated contacts, this connector offers high-temperature resistance up to 105°C, UL and CSA certifications, and a maximum current capacity of 8.5A at 600V. Its shrouded and polarized design ensures safe connections, making it ideal for PCB power applications requiring high reliability and durability in demanding environments.
Get Molex Micro-Fit 3.0 436500214 today—built for reliable power connections and long-lasting durability.
Frequently Asked Questions
Where can I buy MOLEX 436500214?
You can click on the BUY or RFQ button to purchase 436500214 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 436500214?
You can download the 436500214 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 436500214?
MOLEX
