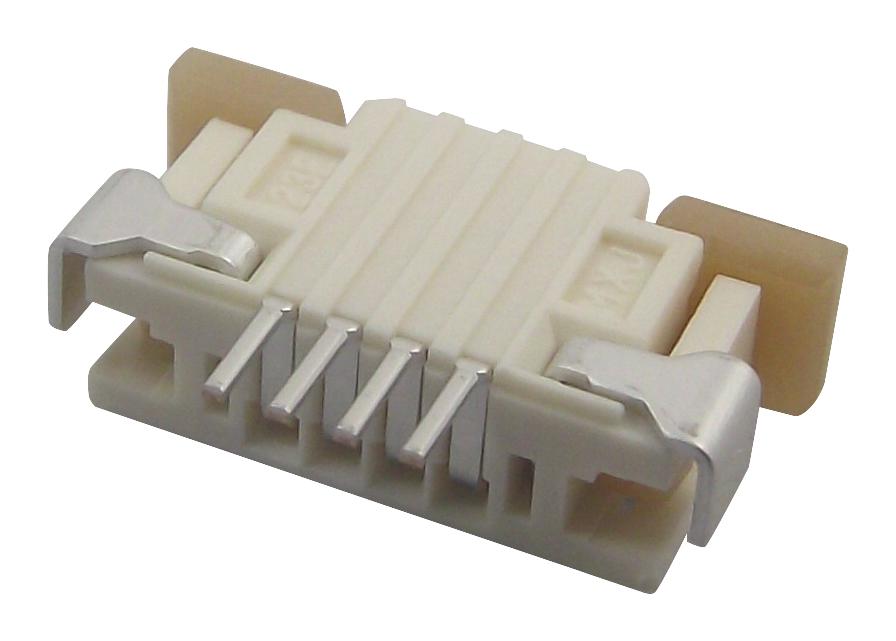

MOLEX 522710779 FFC FPC Connector
The Molex Easy-On FFC-FPC Connector Series features a 1.00mm pitch, right-angle bottom contact design, and is ideal for compact electronic applications. It provides reliable connections for flexible flat cables with a 7-circuit configuration, rated for up to 0.5A and 50V. Made with phosphor bronze and tin-bismuth plating, this surface-mount connector offers high durability up to 30 mating cycles, RoHS and REACH compliance, and operates within a temperature range of -40°C to +85°C. Its precise design ensures secure, high-quality electrical connections in compact electronic assemblies.
MOLEX 522710779 FFC FPC Connector Specifications:
- Pitch: 1.00mm
- Number of Circuits: 7
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin-Bismuth
- Material - Plating Termination: Tin-Bismuth
- Material - Resin: Nylon
- Contact Height: 3.00mm
- Durability: Up to 30 mating cycles
- Operating Temperature Range: -40°C to +85°C
- Voltage Rating: 50V AC/DC
- Current Rating: 0.5A per contact
- Mounting Type: Surface Mount (SMT)
- Color - Resin: Natural
- Flammability: 94V-0
- Orientation: Right Angle
- Packaging: Embossed Tape on Reel
- Axial Pitch - Interface: 1.00mm
- RoHS / REACH: Compliant
- Agency Certifications: UL, CSA
Buy the Buy Molex FFC-FPC Part Number 522710779 Online
Purchase the Molex FFC-FPC connector series online for dependable connections in compact electronic devices. With a 1.00mm pitch and a 7-circuit configuration, this right-angle surface-mount connector offers excellent durability of up to 30 mating cycles. Made from high-quality phosphor bronze with tin-bismuth plating, it supports a maximum voltage of 50V and current of 0.5A per contact, operating within -40°C to +85°C. Perfect for flexible flat cable applications in sophisticated electronic assemblies, ensuring secure, consistent performance.
Order your Molex Series52271 FFC-FPC connector today and secure reliable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 522710779?
You can click on the BUY or RFQ button to purchase 522710779 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 522710779?
You can download the 522710779 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 522710779?
MOLEX
