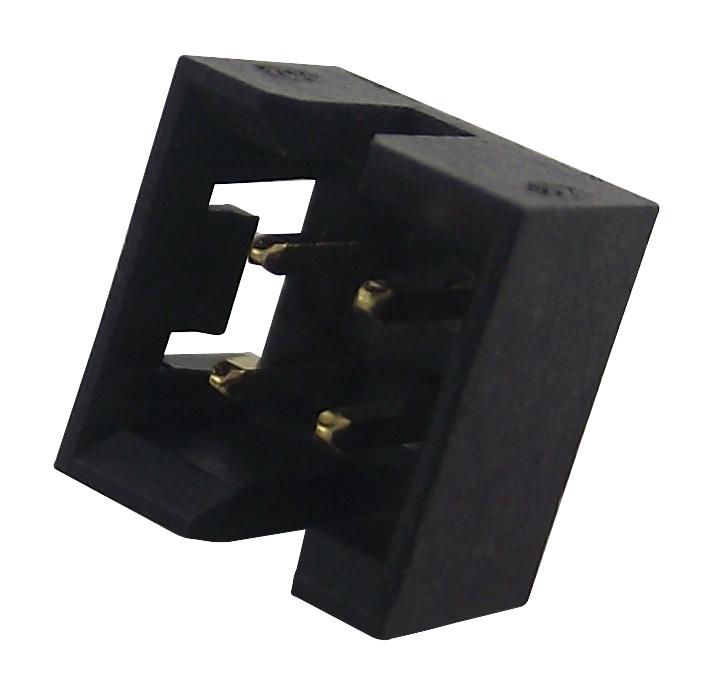

MOLEX 878310442 Milli-Grid Connector
The Milli-Grid Connector System features a 2.00mm pitch header, designed with a vertical through-hole interface, shrouded construction, and gold plating for reliable electrical connections. Suitable for wire-to-board applications, it supports up to 4 circuits with a max current of 2.0A per contact and voltage of 125V. Constructed from durable nylon and phosphor bronze, it withstands -55°C to +105°C temperatures, offers 94V-0 flammability rating, and is RoHS compliant. Its compact design ensures secure mating and reusability for various industrial and automotive applications.
MOLEX 878310442 Milli-Grid Connector Specifications:
- Pitch - Mating Interface: 2.00mm
- Number of Circuits: 4
- Color - Resin: Black
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold (Au)
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Durability (mating cycles max): 100
- Flammability: 94V-0
- Temperature Range - Operating: -55°C to +105°C
- Current - Maximum per Contact: 2.0A
- Voltage - Maximum: 125V
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tube
- Shrouded: Yes
- Surface Mount Compatible (SMC): Yes
Buy the Buy Molex Milli-Grid Part Number 878310442 Online
Purchase the Molex Milli-Grid Connector online today and secure a high-quality, durable component suitable for industrial, automotive, and electronic applications. Featuring a 2.00mm pitch, shrouded design, and gold plating, this connector offers excellent electrical performance and reliable mating cycles. Its robust nylon body and phosphor bronze contacts withstand harsh temperature conditions from -55°C to +105°C. Whether for wire-to-board or precision mating, this connector guarantees safety, efficiency, and ease of installation, making it an ideal choice for demanding technical environments.
Buy Molex 878310442 now and experience unmatched reliability and performance in wire-to-board connections with 2A current capacity.
Frequently Asked Questions
Where can I buy MOLEX 878310442?
You can click on the BUY or RFQ button to purchase 878310442 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 878310442?
You can download the 878310442 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 878310442?
MOLEX
