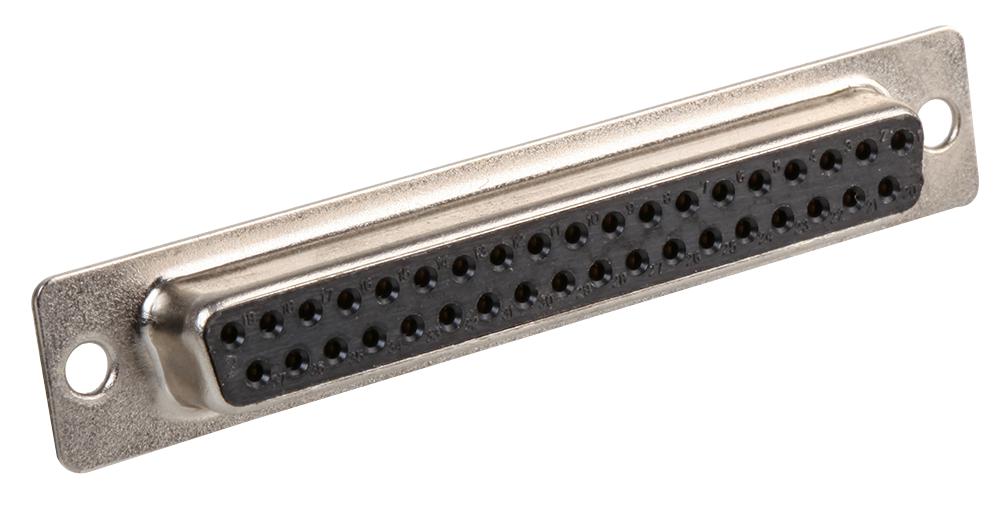

MULTICOMP PRO 698131 D-Sub Connector
The D-Sub Connector with solder bucket and EMI/RFI shielding offers reliable electrical connectivity for industrial and electronic applications. Manufactured with brass contacts plated in gold over nickel and tin-plated solder cups, it ensures excellent corrosion resistance and low contact resistance. The connector features steel shells, PBT and glass-fiber reinforced insulators, and supports a working voltage of 250Vrms. Designed for durability, it withstands temperatures from -55°C to +105°C, with an insulation resistance of at least 5000MO at 500V DC, making it ideal for demanding environments.
MULTICOMP PRO 698131 D-Sub Connector Specifications:
- Current Rating: 5 Amps at 25°C
- Insulation Resistance: 5000MO minimum at 500V DC
- Dielectric Withstanding Voltage: AC 1000V minimum for 1 minute
- Contact Resistance: 15mΩ maximum mated
- Operating Temperature: -55°C to +105°C
- Insulator Material: PBT and Glass-Fiber reinforced
- Contact Material: Brass, Gold over Nickel, Tin plated solder cup
- Shell Material: Steel, Tin plated
- Working Voltage: 250 Vrms
- Dimensions vary according to part number, with size options from 09 to 37 ways
- Designed for EMI/RFI shielding with steel shells
- Supports reliable electrical connections in demanding environments
Buy the Multicomp Series D-Sub Connector Solder Bucket: 698131
Purchase the versatile D-Sub Connector with solder bucket and EMI/RFI shielding online today. Designed for high reliability, it features gold-plated contacts, steel shells, and PBT insulators, supporting 250Vrms voltage and operating efficiently in temperatures from -55°C to +105°C. Ideal for industrial equipment, control systems, and electronic device interconnections, this connector ensures low contact resistance and excellent durability. Order now to enhance your project with a dependable, shielded electrical connector engineered for demanding environments.
Get Multicomp Series D-Sub Connector Solder Bucket 698131 today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 698131?
You can click on the BUY or RFQ button to purchase 698131 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 698131?
You can download the 698131 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 698131?
MULTICOMP PRO
