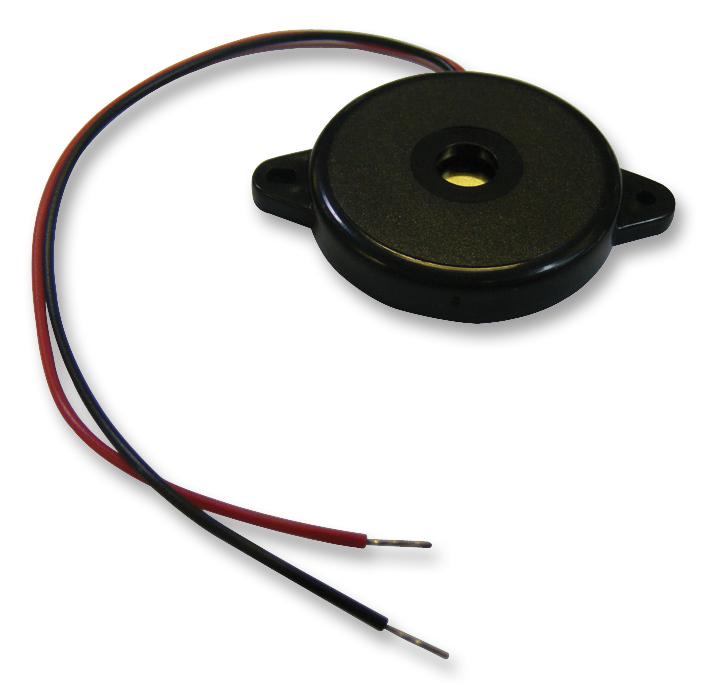

MULTICOMP-PRO ABT431RC Piezo Transducer
The ABT-431-RC is a high-performance piezo transducer suitable for sound generation in AC devices, requiring external circuitry. It features a resonant frequency of 3500Hz with a tolerance of ±500Hz, a capacitance of 430pF with ±30%, and an output level exceeding 88dB at 10cm. Encased in durable black ABS housing, it operates within -20°C to +60°C and has a lead length of 120mm with UL1905 wire. Ideal for electronic sounder applications with continuous tone operation, offering reliable performance in a compact package.
MULTICOMP-PRO ABT431RC Piezo Transducer Specifications:
- Rated Voltage: 9Vp-p
- Operating Voltage: 1-30Vp-p
- Rated Current: <3mA
- Sound Output level: > 88dB at 10cm
- Resonant Frequency: 3500Hz ±500Hz
- Capacitance: 430pF ±30%
- Tone: Continuous
- Housing Material: Black ABS
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -30°C to +70°C
- Lead Wire: UL1905, AWG28
- Lead Length: 120mm
- Weight: 3.59g
Buy the Buy multicomp:ro Piezo Transducer Part Number ABT431RC Online
Order the multicomp:ro ABT-431-RC piezo transducer online today for your sound generation needs. This durable device produces over 88dB at 10cm with a resonance of 3500Hz, making it ideal for electronic alert systems. Its compact size, continuous tone operation, and robust ABS housing ensure long-lasting performance in industrial and electronic applications. Easy to integrate with a 120mm lead wire, it operates reliably in temperatures from -20°C to +60°C, providing clear, loud sound for various alert and notification functions.
Get multicomp:ro ABT-431-RC today—built for sound generation with high output and durable ABS housing for reliable alert applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO ABT431RC?
You can click on the BUY or RFQ button to purchase ABT431RC from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part ABT431RC?
You can download the ABT431RC datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of ABT431RC?
MULTICOMP-PRO
