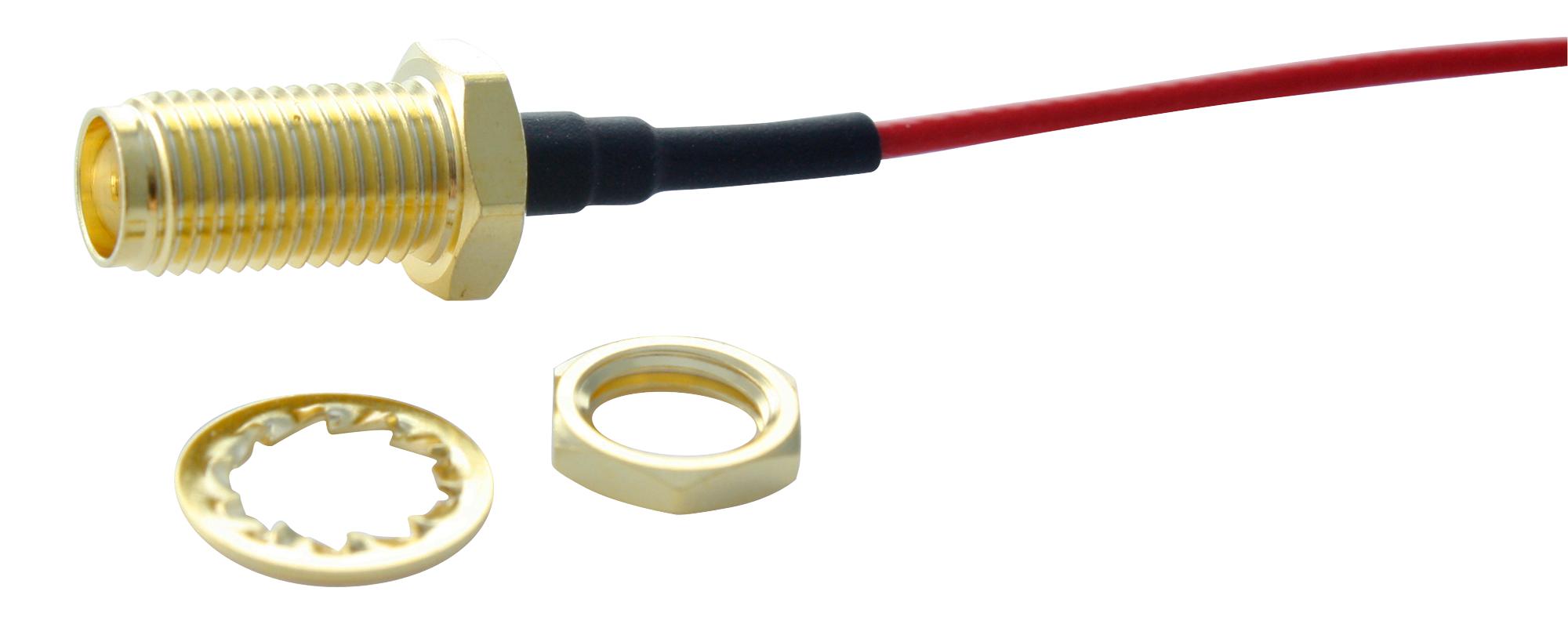

MULTICOMP PRO MC001479 RF Coaxial Adapter
This SMA Bulkhead Jack to SMA Plug upgrade kit is designed for high-frequency applications up to 6 GHz, offering excellent electrical performance with low insertion loss and VSWR. It is RoHS compliant, supporting a maximum working voltage of 335 Vrms and dielectric withstand of 750 Vrms. The kit includes a 200mm red cable, heat-shrink tubes, and crimp connectors, suitable for secure, efficient connections in RF and microwave systems. Ideal for professional and industrial use, providing reliable signal transmission in demanding environments.
MULTICOMP PRO MC001479 RF Coaxial Adapter Specifications:
- Impedance: 50Ω
- Frequency Range: DC to 6 GHz
- Working Voltage: 335 Vrms Max.
- Dielectric Withstanding Voltage: 750 Vrms Max.
- Insulator Resistance: 5000 MΩ Min.
- VSWR: 1.65:1 Max.
- Insertion Loss: -1.5 dB Max.
- Cable: 200mm red cable
- Connector Type: SMA Bulkhead Jack and SMA Plug
- Heat Shrink Tube: F32 2.5mm, L=15mm, Black
- RoHS Compliant
Buy the Multicomp Series RF Coaxial Adapter: MC001479
Purchase the Multicomp MC001479 RF coaxial adapter online today for secure, high-performance connections up to 6 GHz. This reliable assembly includes a SMA bulkhead jack, SMA plug, and necessary crimp connectors for professional-grade RF applications. With RoHS compliance, low insertion loss, and high voltage capabilities, it's ideal for industrial, communication, and testing environments. Order now to enjoy fast shipping and excellent customer support, ensuring your project stays on track with top-quality, durable RF components.
Buy Multicomp MC001479 now and experience unmatched reliability and performance in RF and microwave systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001479?
You can click on the BUY or RFQ button to purchase MC001479 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001479?
You can download the MC001479 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001479?
MULTICOMP PRO
