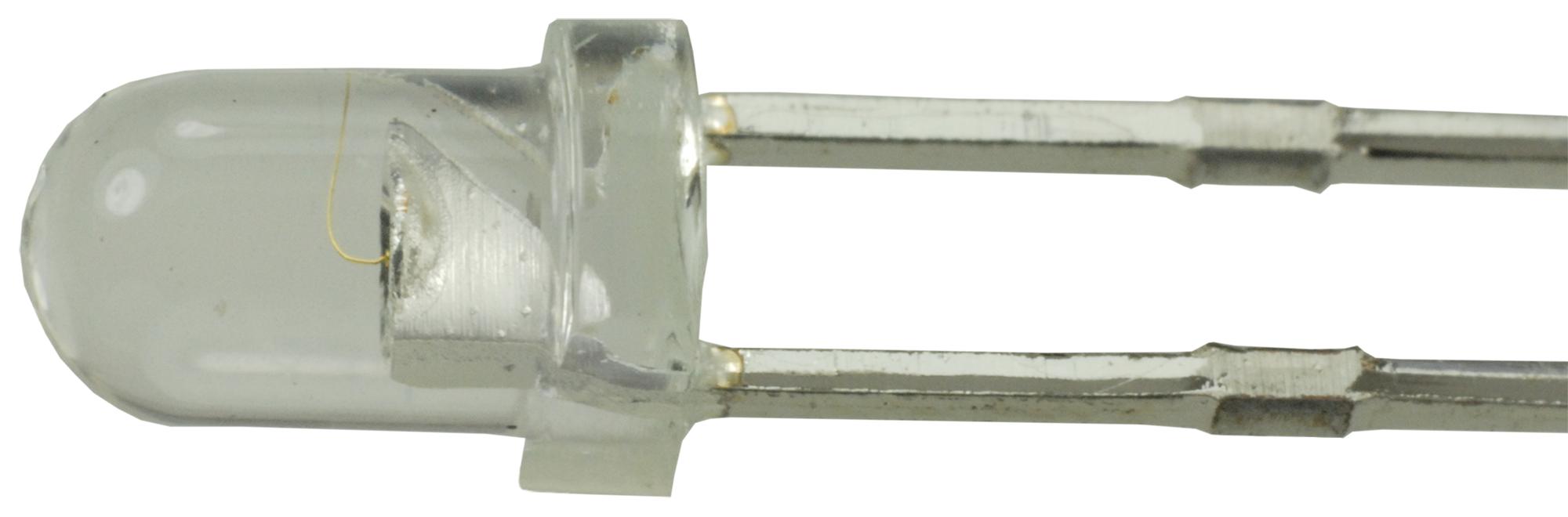

MULTICOMP PRO MCL034SGC Green LED
The MCL034SGC is a through-hole LED featuring a water-clear lens, manufactured using AllnGaP die technology. It emits a vibrant green light at 570nm with a viewing angle of 36°, and a luminous intensity of up to 1,850 med at 20mA. Its specifications include a reverse voltage of 5V, reverse current of 10µA, and an operating temperature range from -40°C to 85°C. This durable LED is suitable for industrial applications, ensures reliable performance, and complies with RoHS standards, making it ideal for various electronic and lighting projects.
MULTICOMP PRO MCL034SGC Green LED Specifications:
- Lens Colour: Water Clear
- Emitted Colour: Green
- Peak Wavelength: 570nm
- Viewing Angle: 36°
- Luminous Intensity: 1,300 to 1,850 med at 20mA
- Reverse Voltage: 5V
- Reverse Current: 10µA at VR=5V
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Lead Soldering Temperature Range: 260°C for 5 Seconds at 4.6mm from body
- Forward Voltage: 1.7V typical at 20mA
- Peak Forward Current: 100mA (duty cycle 1/10 at 1 kHz)
- Power Dissipation: 85mW
- Compliance: RoHS, sg oti
Buy the Multicomp Green 3mm – Reliable Green LED for Industrial Applications
Order the high-quality Multicomp Green 3mm water-clear LED today for your industrial and electronic projects. Featuring AllnGaP technology, it offers a vibrant green light at 570nm with a wide viewing angle of 36°. The LED supports a maximum reverse voltage of 5V and operates reliably within temperatures from -40°C to 85°C. Its compact design and strong durability make it suitable for various demanding applications. Purchase online now and ensure your project benefits from dependable, long-lasting illumination with fast delivery options.
Get Multicomp Green 3mm LED today—perfect for industrial lighting and electronic signaling needs with high reliability and performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL034SGC?
You can click on the BUY or RFQ button to purchase MCL034SGC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL034SGC?
You can download the MCL034SGC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL034SGC?
MULTICOMP PRO
