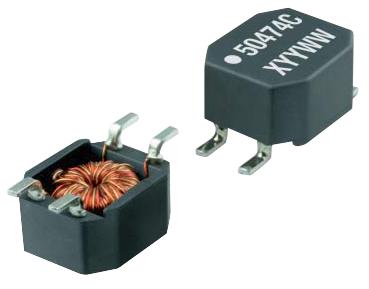

MURATA POWER SOLUTIONS 50105C Common Mode Choke
The 50105C is a 700mA surface-mount common mode choke designed to attenuate common mode noise up to 100MHz. Suitable for line filtering in power management, communication, and networking, it features RoHS compliance, a pure tin DIP finish, and J-STD-020C reflow compatibility. The component operates within -40°C to 85°C ambient temperature, with a maximum DC current of 700mA when temperature rises to 40°C. Its compact size, RoHS compliance, and UL94V-0 flammability rating make it ideal for optimizing electromagnetic compatibility in electronic circuits and line filtering applications.
MURATA POWER SOLUTIONS 50105C Common Mode Choke Specifications:
- Inductance: 1.00 mH with 0.2% tolerance
- Leakage Inductance: 0.40 uH typical, 0.30 uH max
- DC Resistance: 0.40 ohms
- Current Rating: 700 mA at 40°C temperature rise
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 125°C
- Maximum Reflow Temperature: 250°C
- Pin Finish: Pure tin dip
- Flammability Rating: UL94V-0
- Moisture Sensitivity Level: 1
- Package Size: Compact surface-mount with a weight of approximately 0.309 g
- Compliance: RoHS, J-STD-020C reflow standards
Buy the Murata Series 5000 Common Mode Choke: 50105C
Purchase the Murata Series 5000 50105C common mode choke online today to ensure superior electromagnetic interference filtering in power supplies, communication systems, and networking equipment. This 700mA component offers excellent attenuation up to 100MHz, RoHS compliance, and UL94V-0 rated flame retardant materials. Its compact design and high-quality construction enable seamless integration into various electronic assemblies. By choosing to buy online, you secure a dependable, high-performance line filtering solution that meets industry standards, reduces noise, and improves overall device reliability for your critical applications.
Order your Murata Series 5000 50105C today and enhance your electronic circuits with reliable noise filtering and line stability solutions.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS 50105C?
You can click on the BUY or RFQ button to purchase 50105C from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 50105C?
You can download the 50105C datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of 50105C?
MURATA POWER SOLUTIONS
