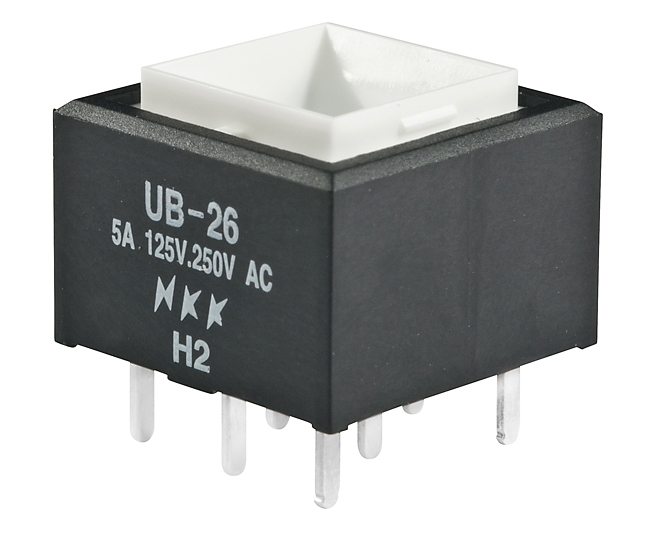

NKK Switches UB26SKW036G Low Profile Pushbutton Switch
A low-profile illuminated pushbutton switch designed for compact electronic applications with PC mount compatibility. Features LED illumination options including bright and super bright LEDs in multiple colors, with easy snap-in mounting and optional protective guards. Suitable for panel mounting, it offers reliable electrical ratings of 5A at 125/250V AC, with durable contacts made from silver or gold-plated copper alloys. The switch body is made from UL94V-0 reinforced polyamide, ensuring robust performance in dynamic environments. It supports momentary and alternate action circuits, with keylock and tactile options, making it ideal for control panels, instrumentation, and industrial equipment.
NKK Switches UB26SKW036G Low Profile Pushbutton Switch Specifications:
- Housing Material: UL94V-0 reinforced polyamide
- Contact Resistance: Silver contacts: 50 milliohms max; Gold contacts: 100 milliohms max
- Electrical Ratings: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Mechanical Life: 1,000,000 operations for momentary, 200,000 for resistive load
- Operating Temperature: -25°C to +50°C (illuminated), -20°C to +70°C (non-illuminated)
- Contact Material: Silver alloy or copper with gold plating
- Mounting: Snap-in PCB mounting
- Panel Thickness: 0.039” to 0.126” (1.0mm to 3.2mm)
- LED Specifications: Bright and super bright LEDs, color options include red, amber, green, white, blue
- LED Forward Voltage: 1.85V to 3.2V depending on color
- Voltage Rating: 5A @ 125/250V AC
- Protection: Epoxy-sealed terminals, optional protective guards
- Switch Operation: Snap-acting contact mechanism, pretravel 0.067”, overtravel 0.024”, total travel 0.091” (2.3mm)
- Standards & Certifications: UL Recognized, CSA Certified (order with markings)
- Environmental Conditions: Humidity 95% at 40°C for 96 hours, vibration 3Hz-55Hz, shock 50G.
Buy the NKK Series UB – Reliable Control Switch for Industrial Applications
Order the NKK Series UB low-profile illuminated pushbutton switch online today to enhance your control panel with durable contacts, LED illumination, and reliable operation. Designed for compact spaces, it offers quick snap-in mounting, excellent electrical ratings, and optional safety features like protective guards. Whether you need momentary or alternate action circuits, this switch delivers excellent performance, high durability, and versatile options for industrial, instrumentation, or control applications. Get yours now for seamless integration and long-lasting operation!
Buy NKK Series UB low-profile illuminated switch now and experience unmatched reliability and performance in your industrial control panels.
