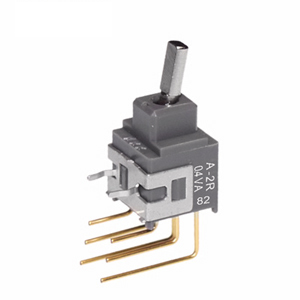

NKK Switches A2RHV Toggle Switch
This is a subminiature toggle switch designed for precise control in compact electronic applications. It features reliable operation and is suitable for use in various electronic devices requiring small and efficient switching components.
NKK Switches A2RHV Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC, across 0.1mA to 0.1A @ 20mV to 28V
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum for most circuits
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (momentary), 1.18N (maintained) for .394” toggles; 2.73N/1.84N for other toggles
- Contact Timing: Nonshorting, break-before-make
- Angle of Throw: 26°
- Materials: Toggle - glass fiber reinforced polyamide; housing - nickel plated brass; support bracket - glass fiber reinforced polyamide; movable contact - tin plated phosphor bronze; stationary contacts - phosphor bronze with gold plating; terminals - brass with gold plating
- Environmental Conditions: Operating temp -30°C to +85°C, humidity 90-95% for 240 hours @ 40°C, vibration 10-55Hz, shock 50G
- Soldering: Wave and manual soldering profiles recommended; suitable for automated cleaning
- Standards & Certifications: Not UL or CSA tested
- Design: Sealed body, antistatic toggle, with epoxy sealed or ultrasonically welded terminals suitable for automated assembly
Buy the NKK A2RHV – Reliable Toggle for Industrial Applications
Discover the high-quality NKK toggle switch A2RHV, designed for precise, reliable switching in space-constrained electronic applications. This compact toggle features a sealed body construction, ensuring contact protection against contamination, and supports automated soldering and cleaning processes. Its durable materials and high mechanical and electrical life ratings make it ideal for industrial, automation, and control systems. Enhance your project's performance with this dependable switch, available now for quick online purchase, ensuring efficient installation and outstanding durability in electronics and machinery.
Get NKK A2RHV toggle switch today—built for precision and long-lasting durability in compact electronic designs.
Frequently Asked Questions
Where can I buy NKK Switches A2RHV?
You can click on the BUY or RFQ button to purchase A2RHV from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A2RHV?
You can download the A2RHV datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A2RHV?
NKK Switches
