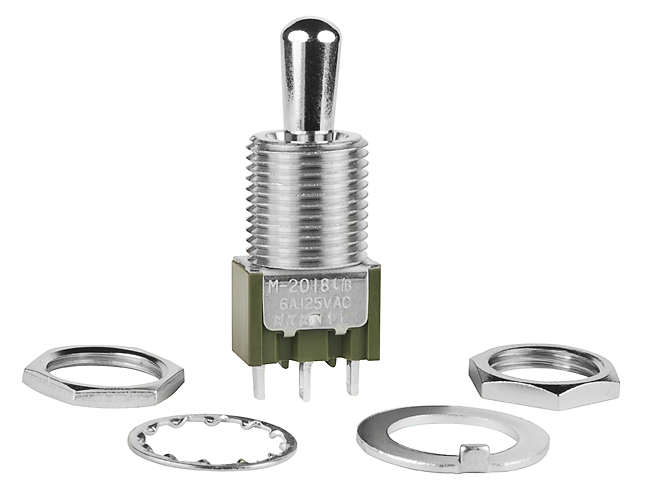

NKK Switches M2018BB1W01 Miniature Toggle Switch
Miniature toggle switches with high insulation barriers and anti-rotation design, rated for 6A at 125V AC and 3A at 250V AC. Constructed with brass, nickel or chrome finishes, sealed epoxy terminals, and wide temperature ratings from -30°C to +85°C. Features include high dielectric strength, mechanical and electrical longevity, and optional splashproof options. Suitable for industrial control, automation, and machinery applications, these switches incorporate UL and CSA certifications, and are available with various bushings, caps, and mounting hardware for versatile installation in electrical systems.
NKK Switches M2018BB1W01 Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 6A @ 125V AC, 3A @ 250V AC, 0.4VA max @ 28V DC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: Minimum 100,000 operations; 50,000 for flat, locking & splashproof devices
- Electrical Life: Minimum 50,000 operations for silver, 25,000 for gold; 50,000 at 3A @ 125V AC
- Operating Temp Range: -30°C to +85°C
- Vibration Resistance: 10-55Hz, peak-to-peak 1.5mm
- Shock Resistance: 50G acceleration
- Sealing: Splashproof options meet IP67 (IEC60529)
- Materials: Brass with chrome or nickel plating, polycarbonate or polyethylene caps, epoxy-sealed terminals
- Standards & Certifications: UL 94V-0 flammability rating, UL and CSA recognized
- Mounting Torque: 3.0Nm for large bushings, 1.5Nm and 0.7Nm for others
- Soldering & Cleaning: Wave soldering and manual soldering profiles provided, hand cleaning recommended
Buy the NKK Miniature Toggle Switch – Reliable Control Device for Industrial Applications
Purchase the high-quality miniature toggle switch online today and ensure your electrical projects benefit from durable, certified, and versatile switching solutions. Designed for industrial applications, this switch offers high capacity, long mechanical life, and sealed terminals for reliability in harsh environments. Choose from various bushings, caps, and mounting hardware to customize your installation. With fast delivery and competitive pricing, buying online is the best way to secure a trusted control component for your automation, control panels, or machinery upgrades.
Buy NKK miniature toggle switch now and experience unmatched reliability and performance in industrial control and automation systems.
Frequently Asked Questions
Where can I buy NKK Switches M2018BB1W01?
You can click on the BUY or RFQ button to purchase M2018BB1W01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2018BB1W01?
You can download the M2018BB1W01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2018BB1W01?
NKK Switches
