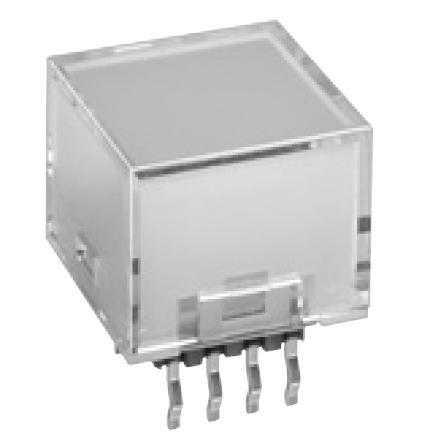

NKK Switches NP0115HG03NNH Subminiature Illuminated Pushbutton
The NKK NPO1 Series subminiature illuminated pushbutton switch is compact and designed for panel mounting, ideal for electronic and control applications. It features a long 1.5mm stroke actuation, integrated LED lighting with options for single or bicolor LEDs, and gold-plated contacts ensuring high reliability. The switch supports resistive loads up to 0.4VA at 28V AC/DC, with a maximum contact resistance of 50 milliohms. Constructed with materials like polycarbonate and glass fiber reinforced polyamide, it withstands operating temperatures from -25°C to +50°C. It’s suitable for low-voltage, low-current circuits with high durability, rated for over 500,000 operations.
NKK Switches NP0115HG03NNH Subminiature Illuminated Pushbutton Specifications:
- Electrical Capacity: 0.4VA max at 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megaohms min @ 250V DC
- Dielectric Strength: 250V AC for 1 min
- Nominal Operating Force: 1.5N +0.5N (standard), 2.5N +0.8N (high)
- Stroke: 1.5mm (.059")
- Materials & Finishes: Actuator - Silicon rubber; Base - Polycarbonate resin; Contact - Silver over nickel with gold plating; Terminals - Brass with gold plating
- Operating Temperature Range: -25°C to +50°C
- Humidity Resistance: 96 hours @ 40°C, 90-95% humidity
- Vibration Tolerance: 3 directions, 2 hours each
- Shock Resistance: 50G acceleration
- Soldering: Wave - 270°C max @ 6 sec; Manual - 390°C max @ 4 sec
- Durability: 500,000 operations
- Size & Dimensions: 12.5mm (.492”) from PCB to top of cap
