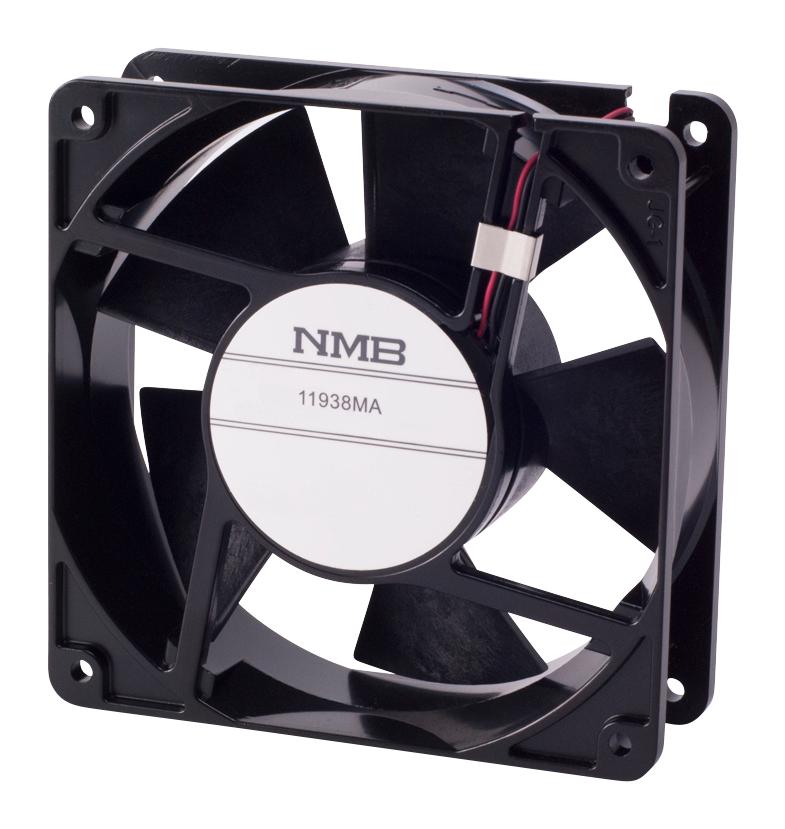

NMB TECHNOLOGIES 11938MA24PGA00 Industrial Cooling Fan
The 11938MA24PGA00 is a high-performance, IP69K rated fan designed for industrial applications, offering reliable cooling with a compact aluminum casing and UL94V-0 plastic impeller. It features ball bearings for durability, and UL1007 lead wires for easy wiring connections. Operating efficiently at 24V with a maximum airflow of 4700 CFM, it provides excellent static pressure and low noise levels for demanding environments. Suitable for applications requiring robust, water-resistant, and corrosion-resistant ventilation solutions with a long operational lifespan of up to 100,000 hours.
NMB TECHNOLOGIES 11938MA24PGA00 Industrial Cooling Fan Specifications:
- Rated Voltage: 24V
- Operating Voltage: 15.0~27.6V
- Power: 0.26~0.93A
- Air Flow: 2700-4700 CFM
- Static Pressure: 0.31-0.86 in H2O
- Max Speed: 2700-4700 min-1
- Noise Level: 45-59 dB
- Insulation Resistance: 10MΩ or over with a DC500V Megger
- Dielectric Withstand Voltage: AC 700V 1s
- IP Code: Ip69K
- Material: Aluminum (Casing), Plastic (Impeller)
- Bearing: Ball Bearing
- Lead Wire: UL1007, AWG24, +Red, -Black
- Expected Life: 100,000 Hours (L10)
- Environmental Resistance: -10°C to +70°C Operating, -40°C to +70°C Storage
- Certifications: IP69K rated, UL Listed
Buy the NMB 11938MA24PGA00 – Reliable Cooling Fan for Industrial Applications
Enhance your industrial cooling with the NMB 11938MA24PGA00 fan, engineered for durability and water resistance. Its robust aluminum casing and UL94V-0 plastic impeller ensure reliable performance in demanding environments. Operating at 24V, it provides high airflow of up to 4700 CFM with low noise levels, ensuring silent yet effective cooling. The ball bearings guarantee long-term operation with an expected lifespan of 100,000 hours. Easy to wire with UL1007 lead wires and certified IP69K, this fan is ideal for harsh conditions requiring dependable ventilation.
Order your NMB Series11938MA24PGA00 today and give your projects the dependable quality they deserve with high-efficiency cooling solutions.
Frequently Asked Questions
Where can I buy NMB TECHNOLOGIES 11938MA24PGA00?
You can click on the BUY or RFQ button to purchase 11938MA24PGA00 from an authorized NMB TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 11938MA24PGA00?
You can download the 11938MA24PGA00 datasheet or visit the NMB TECHNOLOGIES website for support.
Who is the manufacturer of 11938MA24PGA00?
NMB TECHNOLOGIES
