NXP BGU6005N2X GNSS Low Noise Amplifier
The BGU6005/N2, also known as the GPS1001M, is a highly integrated Low Noise Amplifier designed for GNSS receiver applications including GPS, GLONASS, Galileo, and BeiDou. It features a compact 6-pin SOT886 package and requires minimal external components—just one matching inductor and a decoupling capacitor. Offering a noise figure of 0.85 dB and a gain of 17.5 dB, it provides excellent performance with low power consumption, high input P1dB of -6 dBm, and high out-of-band IP3 of 6 dBm. ESD protection and temperature-stabilized bias support reliable and easy integration in mobile and embedded systems.
NXP BGU6005N2X GNSS Low Noise Amplifier Specifications:
- Frequency Range: 1559 MHz to 1610 MHz
- Noise Figure: 0.85 dB
- Gain: 17.5 dB
- Input P1dB: -6 dBm
- Third-Order Intercept Point (IP3): 6 dBm
- Supply Voltage: 1.5 V to 3.1 V, typically 1.8 V or 2.85 V
- Supply Current: 5.2 mA at 1.8 V, up to 5.7 mA at 2.85 V
- Input/Output Return Loss: -8 dB / -14 dB
- Power-down Mode Current: < 2 pA
- ESD Protection: HBM > 2 kV
- Package: XSON6 (SOT886), size 1 x 1.45 x 0.5 mm
- Operating Temperature: -65°C to +150°C
- Supply Voltage Range: 1.5 V to 3.1 V
- Supply Voltage Typical: 1.8 V or 2.85 V
- Thermal Resistance: Junction to solder point approximately 225 K/W
- Designed for high stability and minimal external components, requires only one input inductor and supply decoupling capacitor.

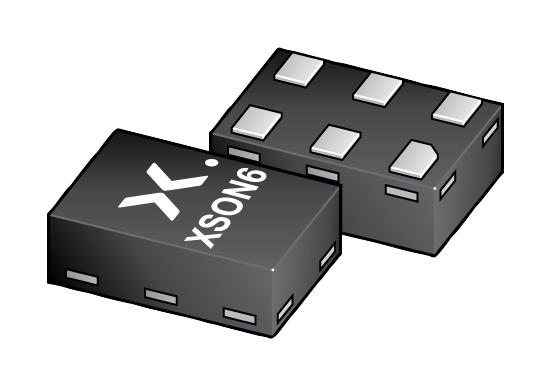

Buy the NXP BGU6005/N2 – Reliable GNSS Low Noise Amplifier for Industrial Applications
Enhance your GNSS receiver systems with the NXP BGU6005/N2 Low Noise Amplifier. This compact, high-performance LNA offers a noise figure of just 0.85 dB and a gain of 17.5 dB, ensuring clear signal reception. Designed for GPS, GLONASS, Galileo, and BeiDou applications, it requires minimal external components, making it easy to integrate. Its small 6-pin package, low power consumption, and robust ESD protection make it ideal for mobile devices, navigation systems, and RF front-end modules, providing reliable operation in demanding environments.
Order your NXP BGU6005/N2 Low Noise Amplifier today and enhance your GNSS modules with high performance, low noise, and compact design for reliable outdoor navigation.
Frequently Asked Questions
Where can I buy NXP BGU6005N2X?
You can click on the BUY or RFQ button to purchase BGU6005N2X from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part BGU6005N2X?
You can download the BGU6005N2X datasheet or visit the NXP website for support.
Who is the manufacturer of BGU6005N2X?
NXP
