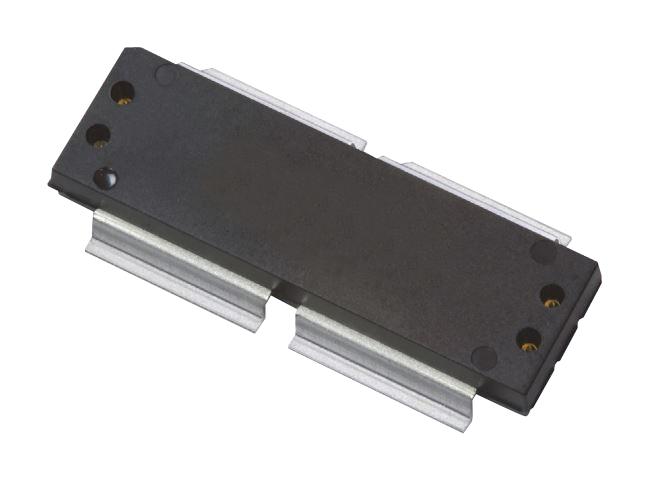

NXP MRFX1K80GNR5 Broadband RF Power Transistor
The MRFX1K80G is a high-power, broadband RF LDMOS transistor designed for industrial, broadcast, aerospace, and medical applications. It operates efficiently from 1.8 to 400 MHz, delivering up to 1800 W CW at 65 V. Its rugged design supports high VSWR conditions, making it suitable for linear and RF power amplification with extended power capability from 30 to 65 V. Featuring integrated ESD protection, high breakdown voltage, and a low thermal resistance package, it ensures reliable performance with a minimum of 15-year product longevity.
NXP MRFX1K80GNR5 Broadband RF Power Transistor Specifications:
- Frequency Range: 1.8 to 400 MHz
- Maximum Output Power: 1800 W CW at 65 V
- Voltage Ratings: Drain-Source Voltage 179 V; Gate-Source Voltage +10 V
- Gate Threshold Voltage: 24-29 V
- Power Gain: 23.0–26.0 dB at 230 MHz
- Drain Efficiency: 71.0–75.7%
- Total Device Dissipation: 3.33 W
- Thermal Resistance, Junction to Case: 0.06 °C/W
- Storage Temperature Range: -65 to +150 °C
- Operating Temperature Range: -40 to +150 °C
- Junction Temperature Range: -40 to +225 °C
- ESD Protection: Human Body Model up to 2500 V
- Package: Plastic, with exposed backside source terminal
- Performance supported over wide frequency range supported by unmatched input/output design
- Supports single-ended or push-pull configurations
- High breakdown voltage and thermal management for reliability
- Qualified for long-term supply: minimum 15 years
Buy the NXP MRFX1K80G – Reliable Broadband RF Power Transistor for Industrial Applications
Get the NXP MRFX1K80G broadband RF power transistor online today. Engineered for high power, rugged performance from 1.8 to 400 MHz, delivering up to 1800 W CW at 65 V. Ideal for industrial, broadcast, aerospace, and medical applications, this device supports linear operation, features integrated ESD protection, and boasts a long product life of over 15 years. Perfect for high-frequency power amplification with exceptional reliability, ensuring your system's efficiency and durability in demanding environments.
Buy NXP MRFX1K80G now and experience unmatched reliability and high performance in RF power amplification across diverse industrial, broadcast, and aerospace sectors.
Frequently Asked Questions
Where can I buy NXP MRFX1K80GNR5?
You can click on the BUY or RFQ button to purchase MRFX1K80GNR5 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MRFX1K80GNR5?
You can download the MRFX1K80GNR5 datasheet or visit the NXP website for support.
Who is the manufacturer of MRFX1K80GNR5?
NXP
