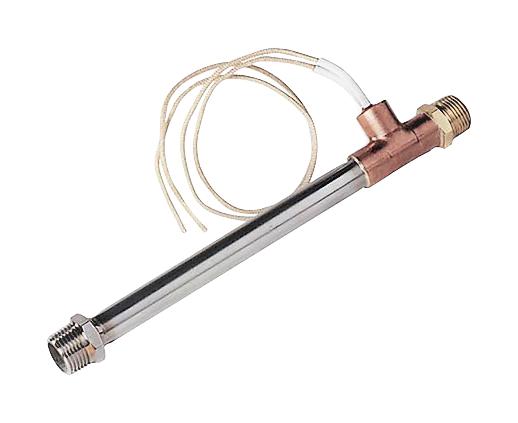

OMEGA AHP3741 In-line Air Gas Heater
The AHP Series “T” type in-line air and gas heater offers precise heating for dry, clean air or gas up to 540°C, with adjustable control via voltage or flow. Suitable for applications like baking, drying, and metal working, it features models with varied wattages, diameters, and voltages, including 120V and 240V options. Easy to install with optional NPT fittings, this durable heater operates efficiently with a maximum flow rate suitable for industrial heating processes, offering reliable, consistent temperature control for demanding environments.
OMEGA AHP3741 In-line Air Gas Heater Specifications:
- Heated Length: 89 mm (3.5 inches) to 140 mm (5.5 inches)
- Wattage: 50W to 750W depending on model
- Maximum Flow Rate: 8 to 20 SCFM
- Diameter: 8 mm (0.31 inches) to 20 mm (0.79 inches)
- Voltage: 120V or 240V models with dual voltage capability
- Pressure Drop: 13.0 psig maximum
- Material: Ceramic coil support, stainless steel sheath, optional brass or stainless steel fittings
- Fittings: NPT female or with optional accessories, thermocouple fittings available
- Construction: Epoxy-sealed, fiberglass insulated leads, optional stainless steel and brass bushings
- Temperature Range: Up to 540°C (1000°F), controlled via voltage or flow adjustments
- Dimensions vary by model, with specific sizes to suit flow and power requirements
Buy the Omega Series AHP: T Type In-Line Air Gas Heater AHP-3741
Purchase the Omega Series AHP-3741 in-line air gas heater online now for precise and reliable temperature control up to 540°C. Designed for industrial applications such as baking, drying, and manufacturing, it offers adjustable wattage, flow rates up to 8 SCFM, and easy installation with optional NPT fittings. Durable and efficient, this heater ensures consistent dry air or gas heating. Improve your process performance by ordering this versatile, high-quality heating component today for fast delivery and technical support.
Order your Omega Series AHP-3741 in-line air heater today and enhance your industrial heating operations with reliable, adjustable performance.
Frequently Asked Questions
Where can I buy OMEGA AHP3741?
You can click on the BUY or RFQ button to purchase AHP3741 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part AHP3741?
You can download the AHP3741 datasheet or visit the OMEGA website for support.
Who is the manufacturer of AHP3741?
OMEGA
