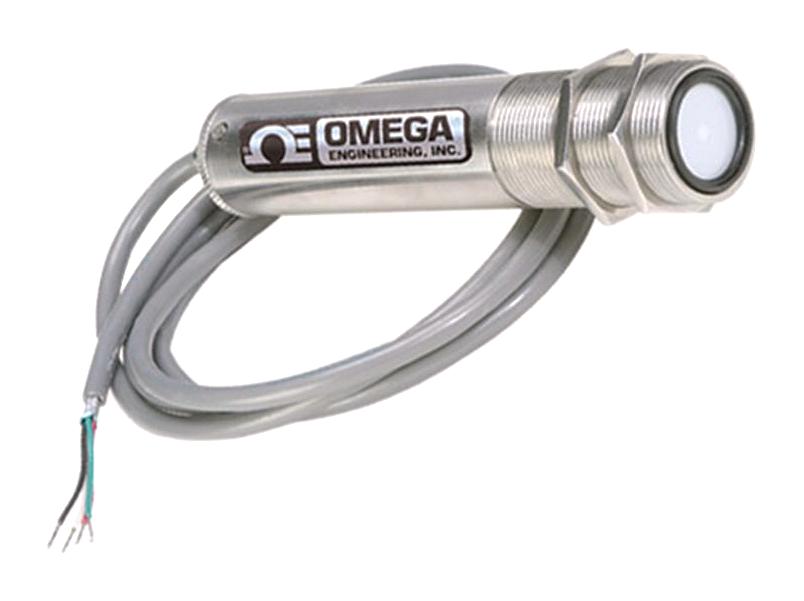

OMEGA OS137A2MA Infrared Temperature Sensor
The infrared temperature sensor and transmitter model OS137A-2 offers precise temperature measurement across a range of -18 to 260°C (0 to 500°F), suitable for industrial applications. It features adjustable emissivity, a 10:1 optical field of view, and multiple analog outputs including 4 to 20 mA, 0 to 5 Vdc, and 0 to 10 Vdc, allowing easy integration with controllers and data loggers. Packaged in a durable stainless steel housing with NEMA 4 (IP65) ratings, it provides reliable performance in demanding environments with adjustable alarm setpoints, quick response time of 150 ms, and a spectral response of 5.5 to 14 microns.
OMEGA OS137A2MA Infrared Temperature Sensor Specifications:
- Temperature Range: -18 to 260°C (0 to 500°F)
- Accuracy: 3% of Rdg or 4.4°C (8°F), whichever is greater
- Repeatability: 1% rdg or 2°F (1°C)
- Field of View: 10 to 1
- Spectral Response: 5.5 to 14 microns
- Emissivity: 0.5 to 1.0, adjustable via a single turn pot
- Response Time: 150 msec
- Outputs: 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc
- Power Supply: 12 to 24 Vdc @ 50 mA
- Operating Temperature: 0 to 70°C without cooling, up to 200°C with air cooling
- Housing: Stainless steel NEMA 4 (IP65)
- Dimensions: 25.4 mm diameter x 127 mm length
- Weight: 226 g (0.5 lb)
Buy the Buy Omega Infrared Temperature Sensor Part Number OS137A-2 Online
Order the Omega OS137A-2 infrared temperature sensor online today to ensure accurate, non-contact temperature measurement in demanding industrial environments. This compact device features adjustable emissivity, multiple analog outputs including 4 to 20 mA, 0 to 5 Vdc, and 0 to 10 Vdc for seamless connection to controllers, data loggers, and PLCs. Its durable stainless steel housing with NEMA 4 (IP65) ratings guarantees reliable operation in harsh conditions. Compact size, fast response time, and adjustable alarm setpoints make it ideal for process monitoring and automation systems, ensuring consistent performance and long-term durability.
Buy Omega OS137A-2 infrared temperature sensor now and experience precise readings, reliable performance, and easy integration for industrial temperature monitoring.
Frequently Asked Questions
Where can I buy OMEGA OS137A2MA?
You can click on the BUY or RFQ button to purchase OS137A2MA from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OS137A2MA?
You can download the OS137A2MA datasheet or visit the OMEGA website for support.
Who is the manufacturer of OS137A2MA?
OMEGA
