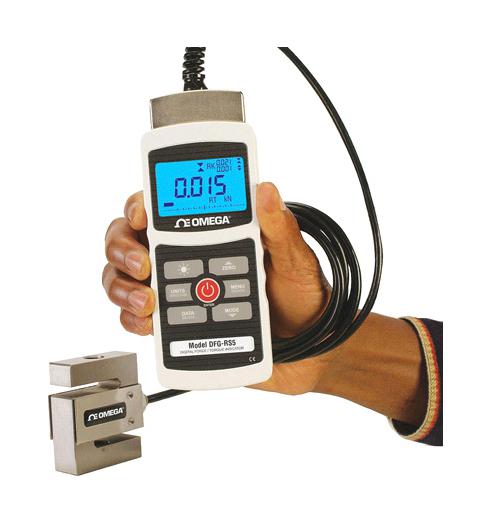

OMEGA DFGRS5 Force and Torque Indicator
This advanced force and torque indicator is designed for use with remote sensors and features interchangeable force and torque sensors. It offers a high sampling rate of 7000Hz for accurate data collection, selectable units of measurement, and calibration data stored within each sensor. The device provides multiple output options including USB, RS232, Mitutoyo, and analog outputs. It supports programmable setpoints with indicators and outputs, and features a large, backlit graphical display displaying live load bar graphs with set point markers. Peak readings and set points are always visible for easy monitoring. The package includes the indicator, carrying case, universal voltage AC adapter, quick start guide, user manual, and certificate of conformance.
OMEGA DFGRS5 Force and Torque Indicator Specifications:
- Accuracy: 0.1% of full scale +1 digit + sensor
- Power: Rechargeable battery or AC adapter (batteries and adapter included)
- Battery Life: Up to 7 hours continuous with backlight on, 24 hours off
- Output: USB, RS232 at 115,200 baud; Mitutoyo serial BCD; analog +1 Vdc ±2%
- Display: Large backlit graphic LCD with load bar graphs
- Sampling Rate: 7000 Hz
- Temperature Range: 4 to 38°C
- Humidity: 96% RH non-condensing
- Weight: 0.3 kg (0.7 lb)
- Dimensions: 149.4 mm H x 64.3 mm W x 33.6 mm D
- Sensor Compatibility: Load cells 0.25 to 10,000 lbs, torque sensors 10 oz-in to 100 lb-in
- Overload Capacity: 150% of full scale for load cells, 150-300% for torque sensors
Buy the Omega Series DFG-RS5 Force and Torque Indicator: DFGRS5
Order the Omega DFG-RS5 today to experience high-precision force and torque measurement with a 7000Hz sampling rate. Easily compatible with a wide range of remote sensors, it features selectable units, multiple output options, and a large backlit display for clear readings. Perfect for demanding testing environments, this device includes a rechargeable battery, data storage, and calibration data in sensors. Delivered with a carrying case, AC adapter, manuals, and a certificate of conformance, it's the ideal tool for accurate measurements and reliable performance.
Get Omega DFG-RS5 today—built for precise force and torque measurement with interchangeable sensors and fast 7000Hz sampling.
