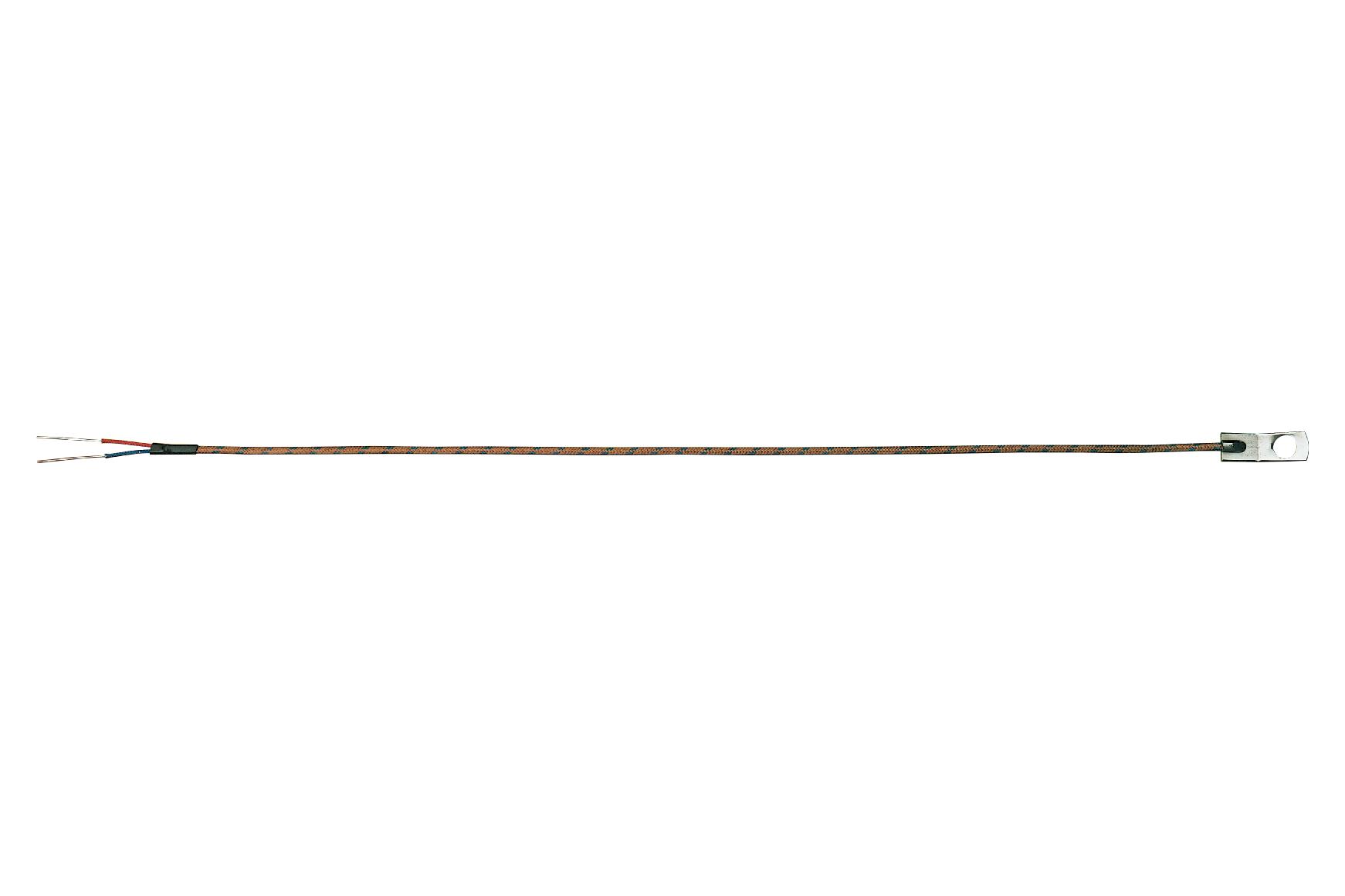

OMEGA WTK612 Thermocouple Assembly
The WT series washer thermocouple assemblies are rugged, insulated, and designed for surface mounting with custom lengths available. They feature M3.5, M4, M6 screw sizes, solid 20 AWG wire, and glass-rated insulation up to 480°C (900°F). These assemblies are suitable for temperature measurement in industrial applications, offering easy installation, with options for Kapton insulation and custom sizes. The grounded junction and PFA insulation provide durability, while the compact dimensions ensure versatility across various surfaces and environments, making them ideal for precise thermal monitoring in demanding conditions.
OMEGA WTK612 Thermocouple Assembly Specifications:
- Screw Sizes: M3.5, M4, M6, #6, #8, #10, %
- Wire Material: 20 AWG solid wire
- Insulation: Glass rated to 480°C (900°F), PFA, Kapton (optional)
- Mounting: Easily mounts to various surfaces
- Dimensions: #6 and #8 screw size: 6.5 mm W x 22L, #10 and %: 9 mm W x 25L
- Lead Lengths: Customizable, standard up to 60 inches, with options for longer
- Temperature Rating: Glass insulation up to 480°C (900°F)
- Construction: Grounded junction, stripped leads as standard
- Connector: Various options available, including male, female, and molded connectors
- Application: Surface temperature measurement in industrial environments
Buy the Buy Omega Thermocouple Assemblies Part Number WTK612 Online
Order the Omega WTK612 washer thermocouple assembly online today for precise and reliable temperature measurement in industrial settings. Featuring rugged construction with glass-rated insulation up to 480°C and customizable lengths, these assemblies are ideal for surface temperature monitoring. Easy to install with various connector options and robust grounded junction design, they ensure durability even in harsh environments. Whether you need M3.5, M4, M6 screw sizes or custom lengths, purchase now to benefit from unmatched quality and performance in temperature sensing applications.
Buy Omega WTK612 washer thermocouple assemblies now and experience reliable temperature measurement with rugged, insulated design suitable for demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA WTK612?
You can click on the BUY or RFQ button to purchase WTK612 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part WTK612?
You can download the WTK612 datasheet or visit the OMEGA website for support.
Who is the manufacturer of WTK612?
OMEGA
