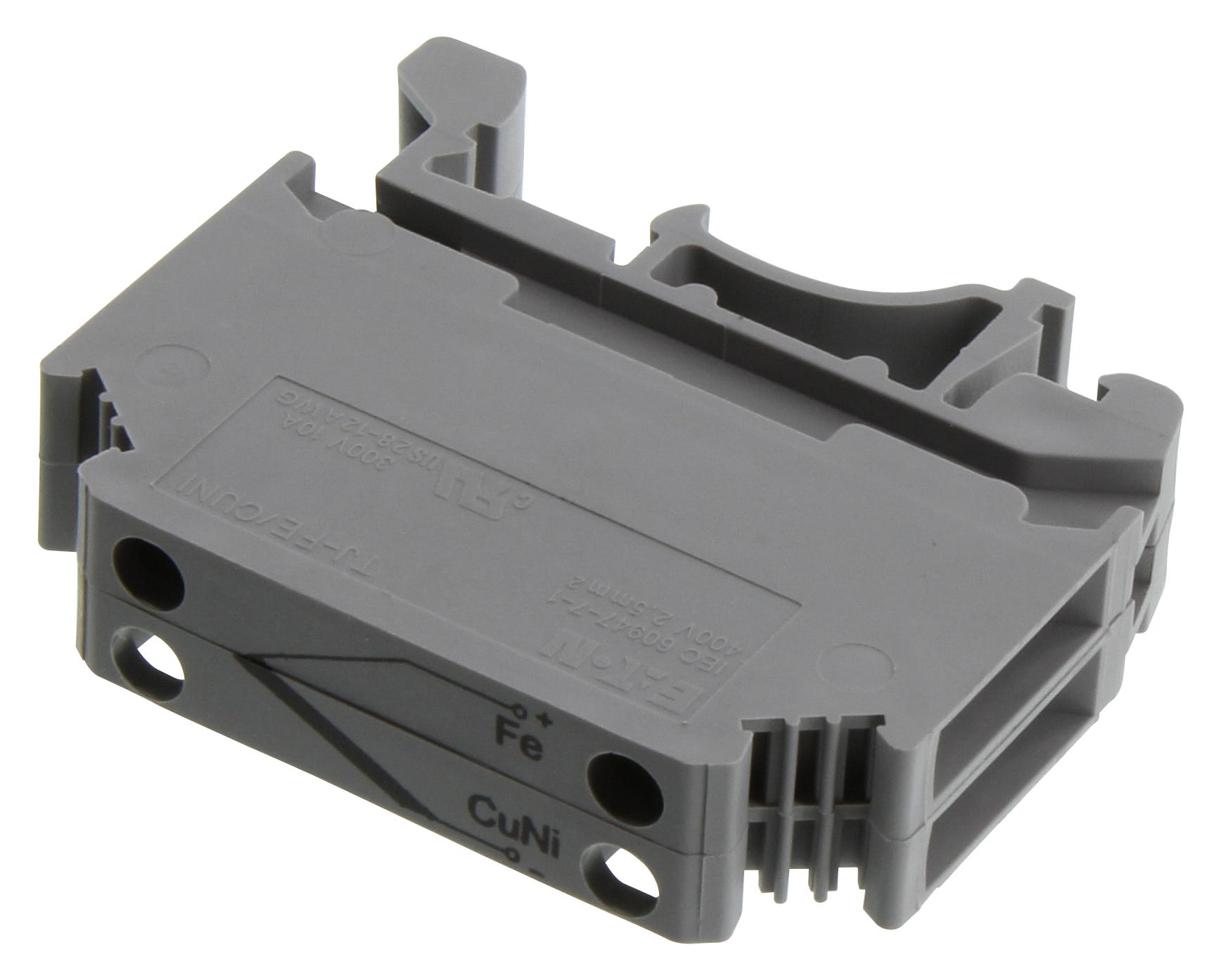

OMEGA XBTKJ25 Thermocouple Terminal Blocks
Thermocouple terminal blocks are designed for various types including J, K, T, E, and R, offering reliable connections for industrial temperature measurement systems. They feature screw-type DIN connectors with a large surface area for marking identification. Made with thermocouple-grade alloys, these blocks support maintenance-free connections, with a durable gray finish and optional white marker strips. Their dimensions include a 10.4 mm width, and they accommodate wire sizes up to 12 AWG. They are rated for temperatures from -40°C to 125°C and conform to UL and c-UL standards, ensuring safety and compatibility in industrial environments.
OMEGA XBTKJ25 Thermocouple Terminal Blocks Specifications:
- Terminal Width: 10.4 mm (0.41")
- Maximum Wire Size: 12 AWG/2.5 mm²
- Connection Data in V/AWG: 400/24-12 Type K
- UL-cUL Ratings in V/A/AWG: 300/10/28-12
- Length: 46.0 mm (1.81"), Cover Width: 1.0 mm (0.04")
- Height for 35 x 7.5/35 x 15: 40.0 mm (1.57")/47.5 mm (1.87")
- Stripping Length: 7 mm (0.28")
- Thread: M3
- Torque: 0.6 to 0.8 inch-lb (5.3 to 7.1 Nm)
- Insulated Temperature Range: -40°C to 125°C (-40°F to 257°F)
Buy the ThermoCouple Terminal Blocks – Reliable J-K-T-E-R for Industrial Applications
Enhance your industrial temperature measurement system with our high-quality thermocouple terminal blocks, compatible with types J, K, T, E, and R. Designed with thermocouple-grade alloys and featuring screw-type DIN connectors, these blocks ensure safe, reliable, and maintenance-free connections. Made with durable materials, they support wire sizes up to 12 AWG and operate within a temperature range of -40°C to 125°C. Easy to identify with large marking areas and compliant with UL ratings, perfect for demanding industrial environments.
Order your Thermocouple Terminal Blocks today and ensure precise, maintenance-free temperature connections for your industrial projects.
