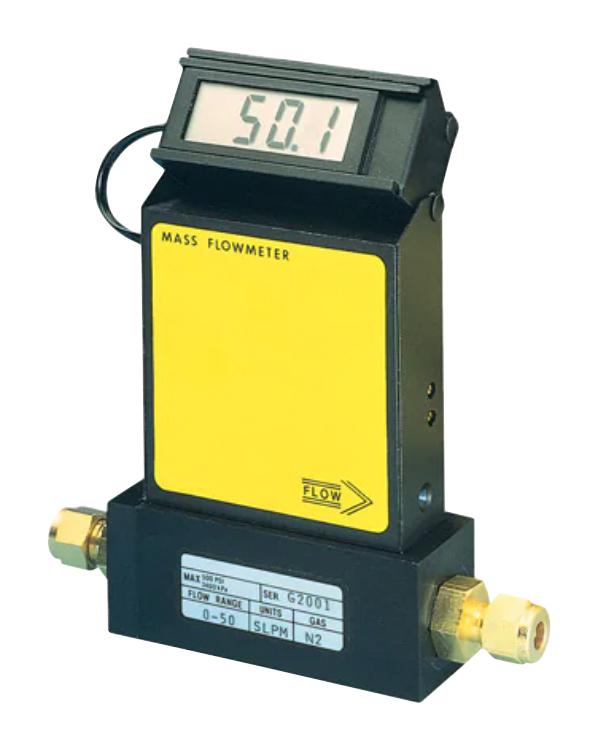

OMEGA FMA1828A Gas Flow Meter
The FMA1828A Series electronic gas mass flow meters are designed for clean gases and offer accurate, reliable monitoring of flow rates from 10 SCCM up to 50 SLM. Featuring heat-based measurement without temperature or pressure compensation, they are available in economical aluminum or corrosion-resistant 316 stainless steel constructions. Equipped with a tiltable LCD display, remote monitoring outputs, and NIST traceable calibration, these versatile flow meters are ideal for laboratory, industrial, and field applications, providing quick, precise readings and enhanced durability in challenging environments.
OMEGA FMA1828A Gas Flow Meter Specifications:
- Accuracy: +1% of full scale, including linearity over 15 to 25°C and 5 to 60 psia
- Repeatability: +0.5% of full scale
- Temperature Coefficient: 0.15% of full scale per °C
- Pressure Coefficient: 0.01% of full scale per psi
- Maximum Pressure Drop: varies with flow rate, up to 252 psi
- Response Time: 800 milliseconds
- Maximum Gas Pressure: 500 psig, 1000 psig for ranges up to 100 SLM
- Gas and Ambient Temperature Range: 0 to 50°C
- Leak Integrity: 1 x 10⁻⁸ std cc/sec helium maximum
- Materials in Contact: 316 stainless steel and FKM O-rings
- Output Signal: 0 to 5 Vdc, 4-20 mA; compatible with external power supply 12 Vdc @ 200 mA
- Dimensions: approx. 14.2 cm (5.60 in) length, weight 2.5 lbs (1.1 kg)
- Certifications: EN55011 Class 1B, EN50082-1
- Operational Pressure Range: up to 500 psig (35 kg/cm² gage)
Buy the Economical Gas Mass Flow Meters Series FMA1828A: FMA1828A
Enhance your gas measurement capabilities with the Economical Gas Flow Meter Series FMA1828A, offering high accuracy and durability. Its corrosion-resistant construction ensures long-term performance in various environments. With an easy-to-read tiltable LCD display, remote analog outputs, and NIST traceable calibration, this flow meter provides quick, dependable readings for laboratory, industrial, and field applications. Compatible with a wide range of gases and pressure conditions, it is the ideal choice for precise flow monitoring and control. Purchase online today to improve your system efficiency.
Order your Economical Gas Mass Flow Meter Series FMA1828A today and ensure precise, reliable flow measurement for your laboratory or industrial processes.
